Autel TPMS TS601 MaxiTPMS Diagnostic And Service Tool





Activates ALL magnetic, frequency and tire deflation triggered sensors using 125KHz continuous or modulated wave signals

Receives both 315MHz and 433MHz signals

Reads / writes sensor ID from vehicle ECU

Reads / clears codes of TPMS system and resets malfunction indicator light

Reads activated sensor data including sensor ID, tire pressure, temperature, battery condition, OE part number, relearn information

Reads, records and playbacks TPMS live data, including tire pressure, signal status, temperature, battery status, etc.

Retrieves TPMS ECU information

Performs actuation tests and special functions

Programs vehicle ECU to learn sensor IDs and positions

Capable of programming single tires for Chrysler, Renault, and Citroen

Checks Remote Keyless Entry (Key FOB) for transmissions

Graphs vehicle with 4 or 5 wheels to simplify the diagnostic process

Pre-selection process offers faster activation and diagnostics

Provides visual and audible responses to confirm sensors are working properly



Display TFT color display (320 x 240 dpi)

Power 3.7V Li-polymer battery

Operating Temperature 0 to 50°C (32 to 122 °F)

Storage Temperature -20 to 70°C (-4 to 158 °F)





1 x TS601 main unit

1x Carry case

1x SD Card

1x CD

1x Charger

1x Magnet

1x OBDII Cable

1x User Manual

1x USB Cable

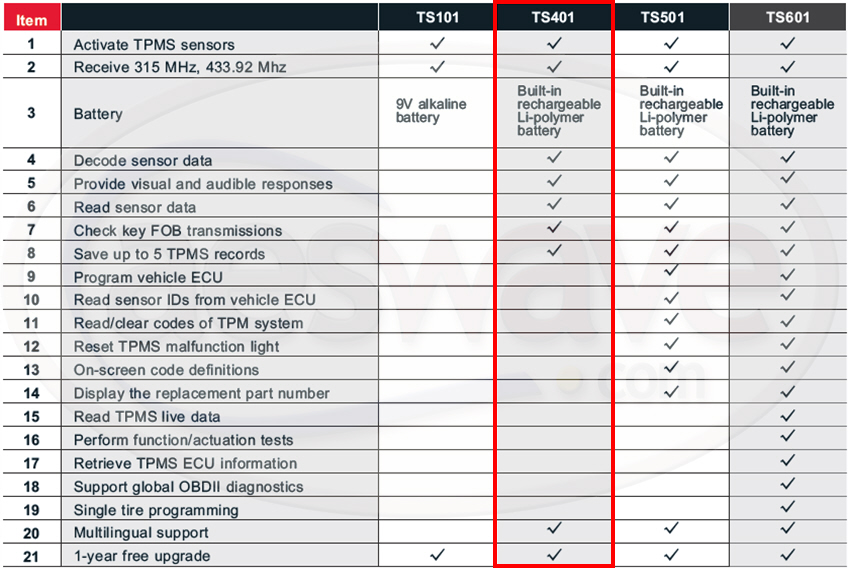

TPMS Function Compare:
