Yanhua Module 38 is compatible with Mini ACDP-1/ACDP-2 and OEM/ aftermarket G-chassis blank keys for BMW G-chassis BDC2 module key adding on bench. No annual fee. No soldering required. No need to buy a specific key. Follow the steps below to install and disassemble the BDC2-ICP interface board for the BMW G-series BDC2 module.

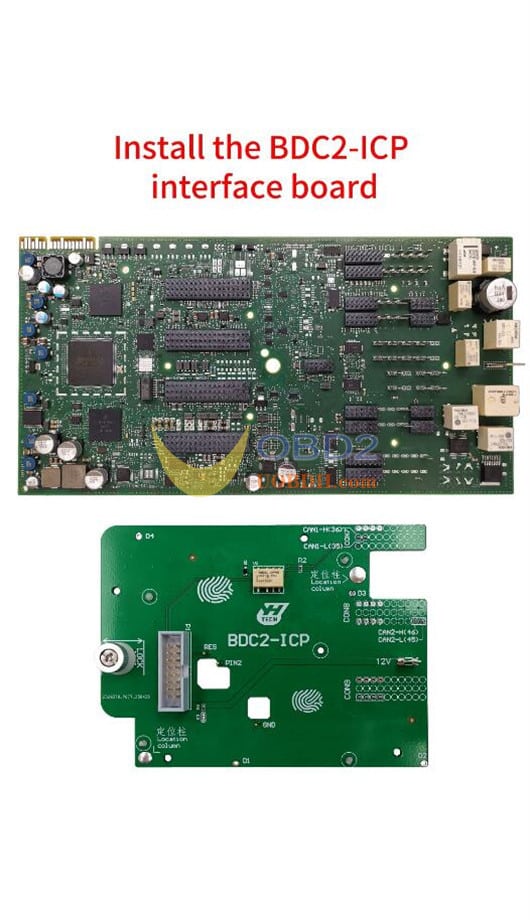

Part 1: Install BDC2-ICP Interface Board

1.Unlock the Interface Board:

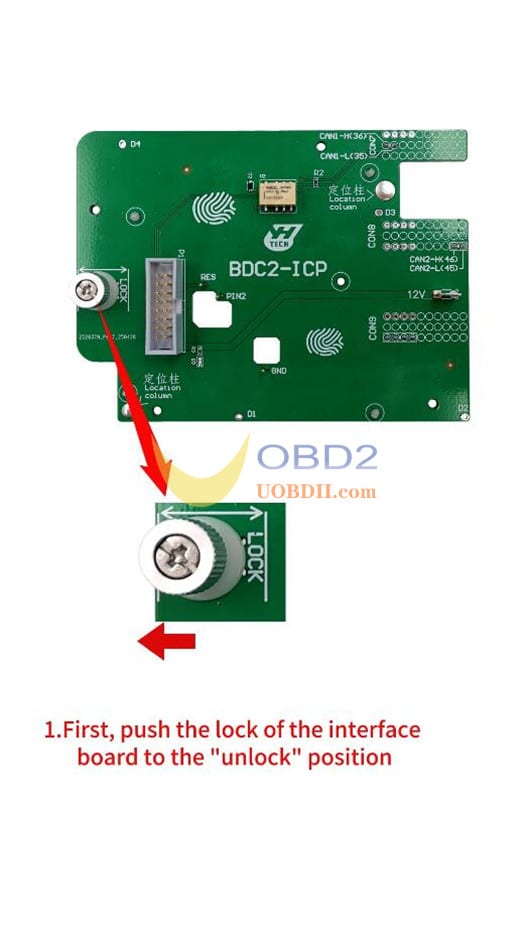

Push the lock on the interface board to the “Unlock” position.

2.Position the Interface Board:

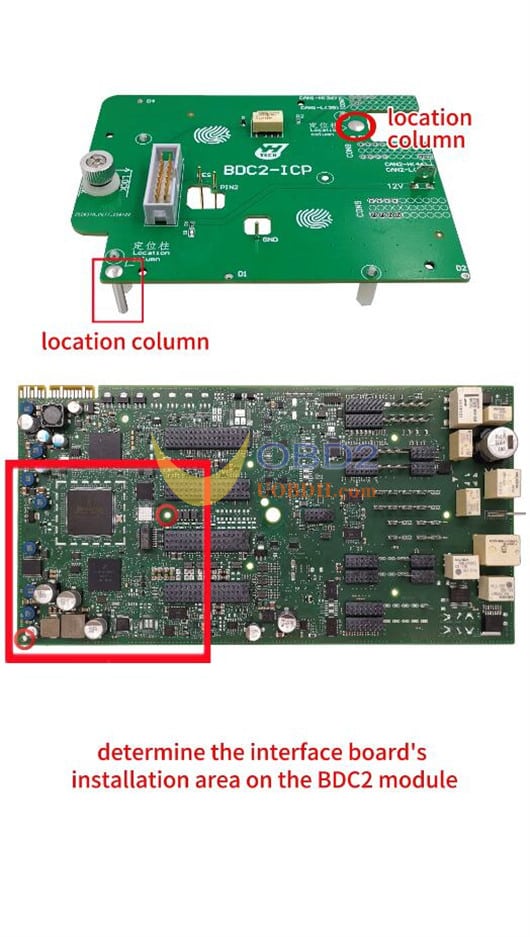

Use the location column on the interface board to identify the installation area on the BDC2 module.

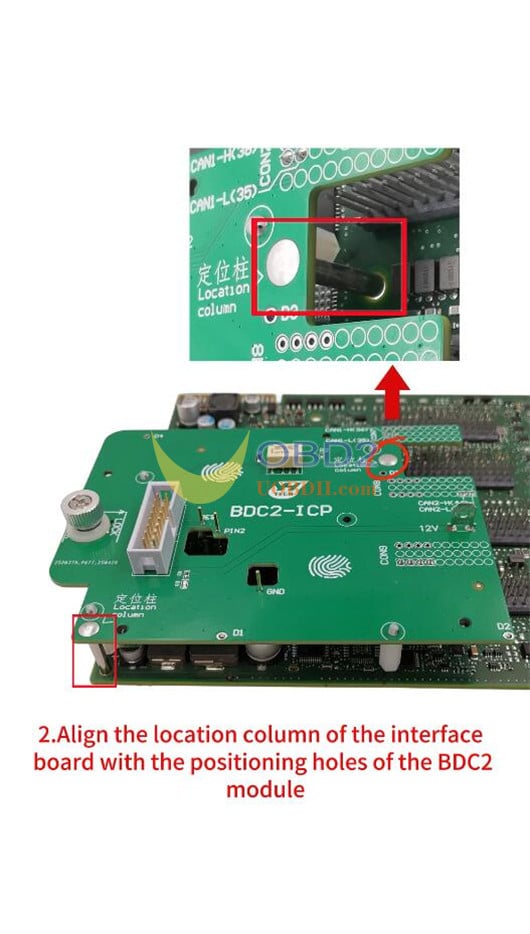

2.Align and Attach the Board:

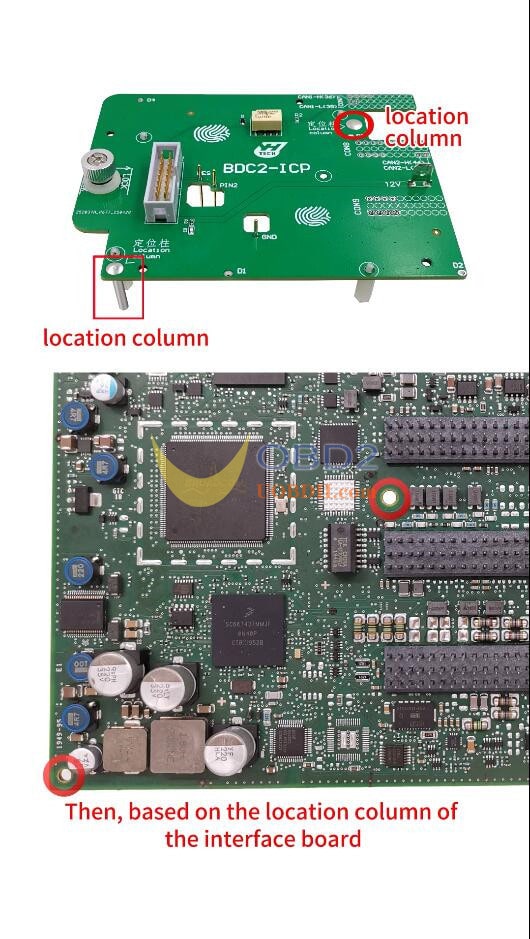

Align the interface board’s location column with the positioning holes on the BDC2 module.

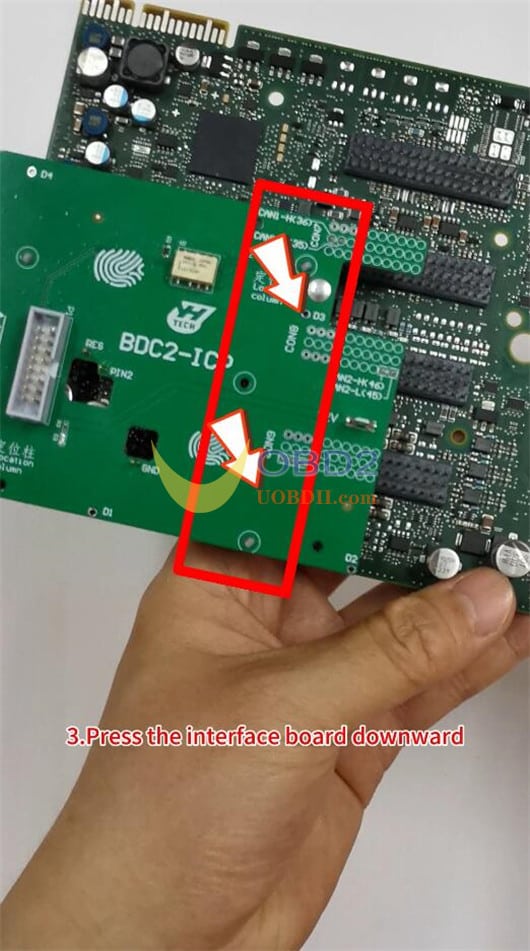

3.Secure the Board:

Press the interface board downward to ensure it is seated correctly.

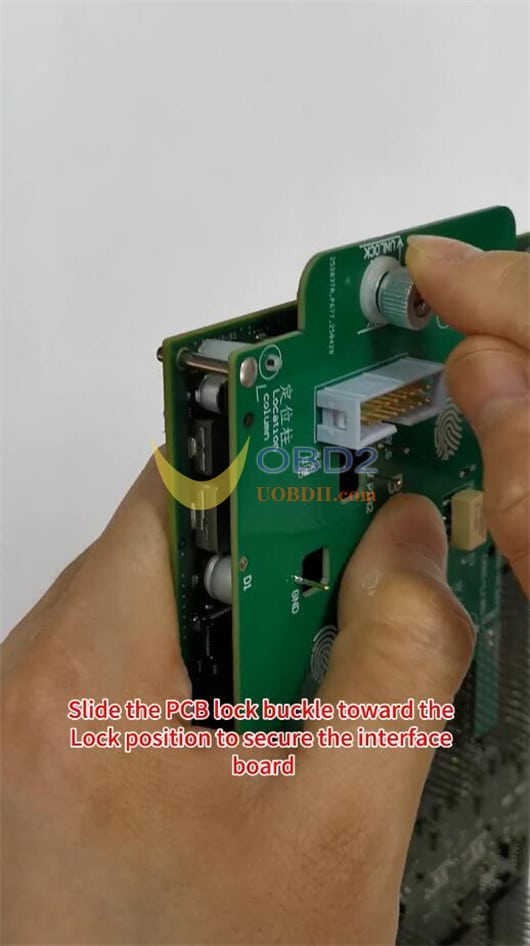

Slide the PCB lock buckle to the “Lock” position to secure the interface board in place.

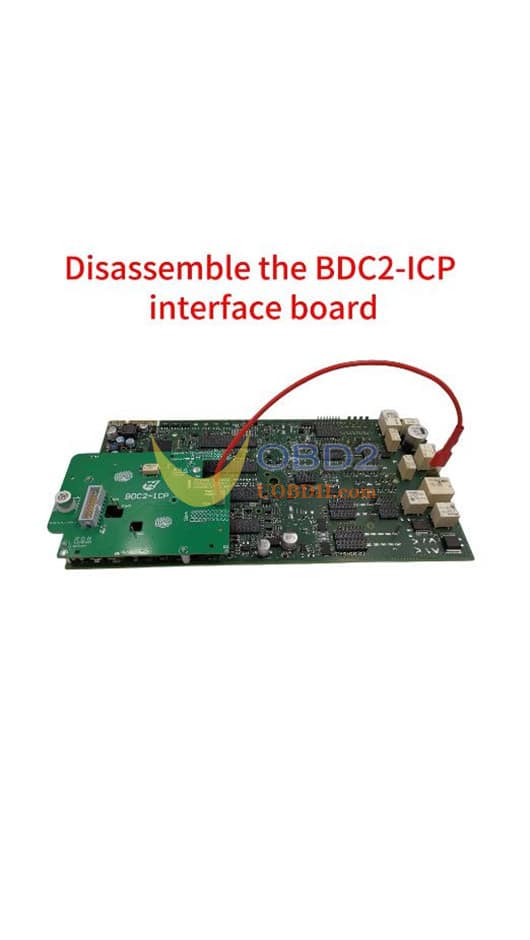

Part 2: Disassemble Yanhua BDC2-ICP Interface Board

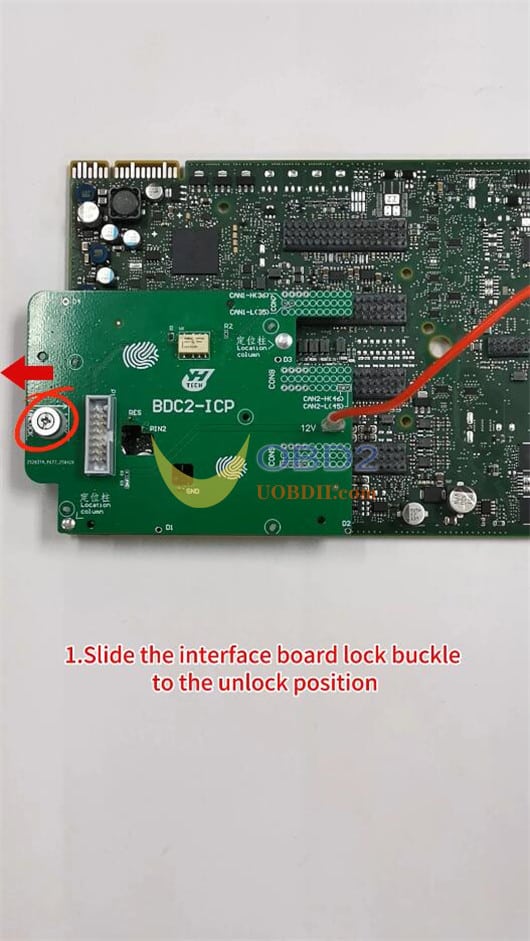

1.Unlock the Interface Board:

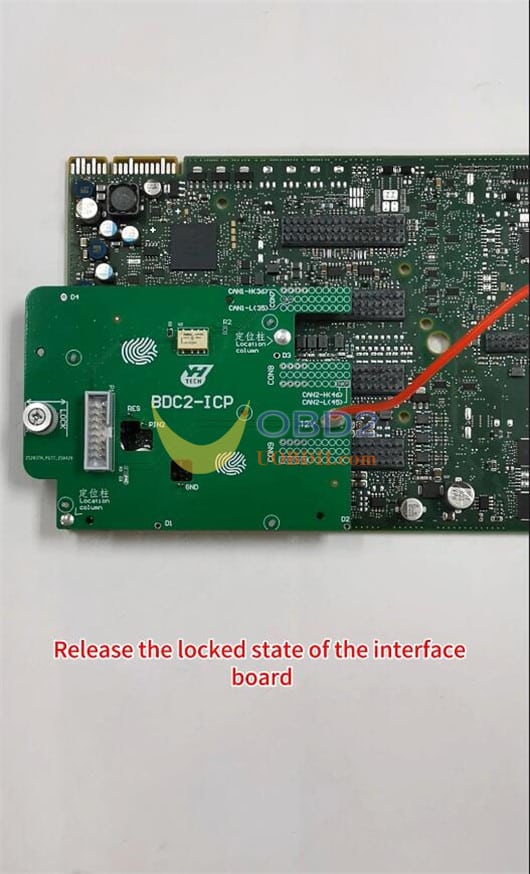

Slide the lock buckle of the interface board to the “Unlock” position to release it.

2.Remove the Interface Board:

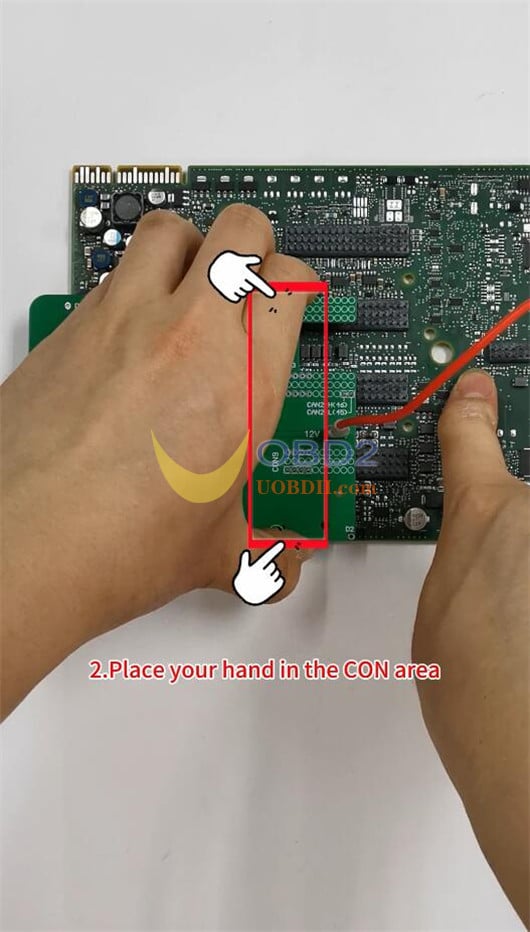

Place your hand in the CON area of the board.

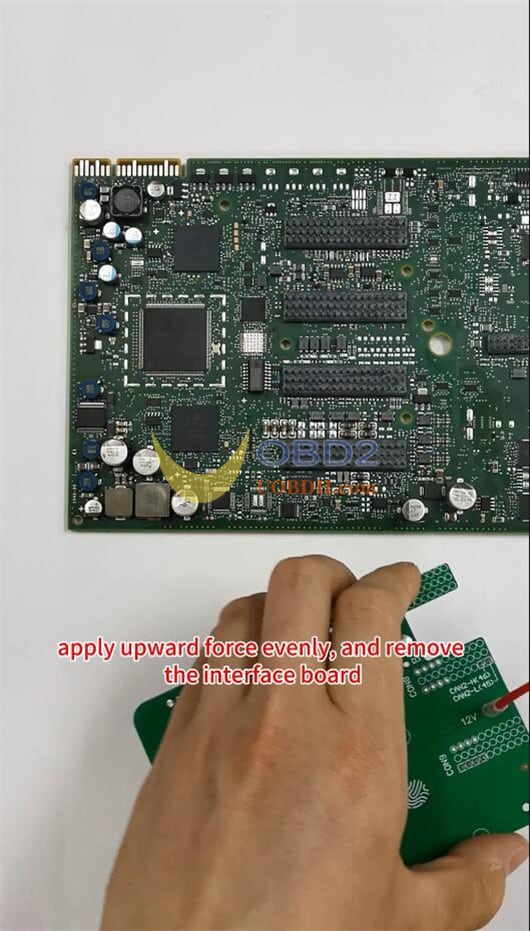

Apply even upward pressure to gently lift and remove the interface board.
