Use Xhorse MLB Tool MQB48 Adapter and Key Tool Plus in 2 Methods

Posted on May 21, 2025 by

Diagzone Xdiag Subscription Renew, LAUNCH LTR-01 RF Sensor, Thinkdiag Renew , Scania SDP3 Installation

Here share two methods to use Xhorse MLB Tool MQB48 Adapter and VVDI Key Tool Plus Pad.

Method 1: Direct Connection

Method 2: Using file transfer

In detail…

Need to bind VVDI MLB Tool to the Xhorse Key Tool Plus

Method 1: Direct Connection

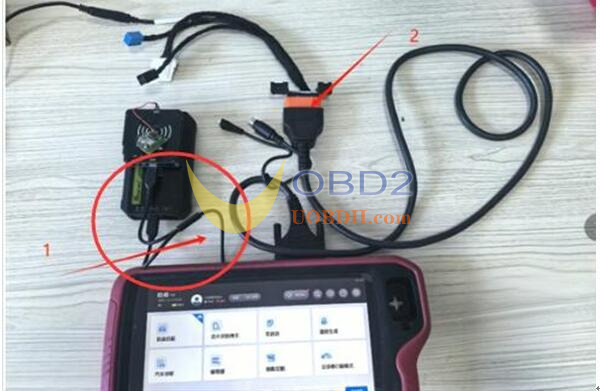

Use a Dual USB-C splitter cable to connect MLB Tool with VVDI Key Tool Plus

Need to supply power to both MLB device and MQB48 adapter

Use Xhorse MLB Tool MQB48 Adapter and Key Tool Plus in 2 Methods

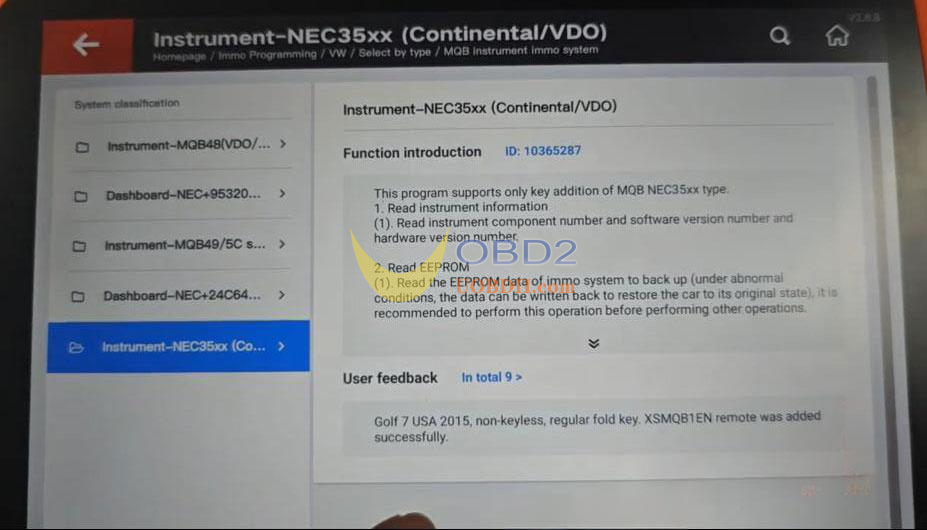

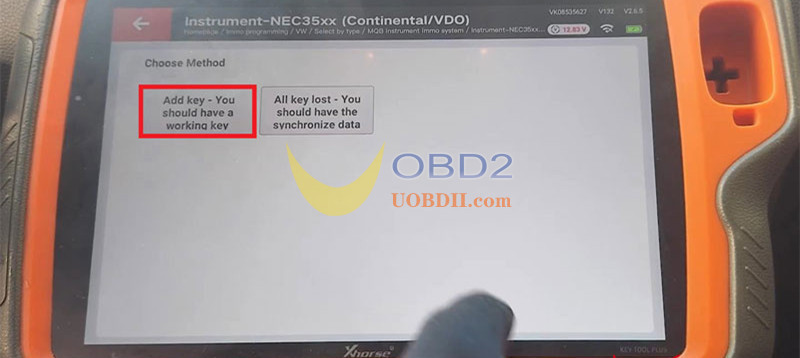

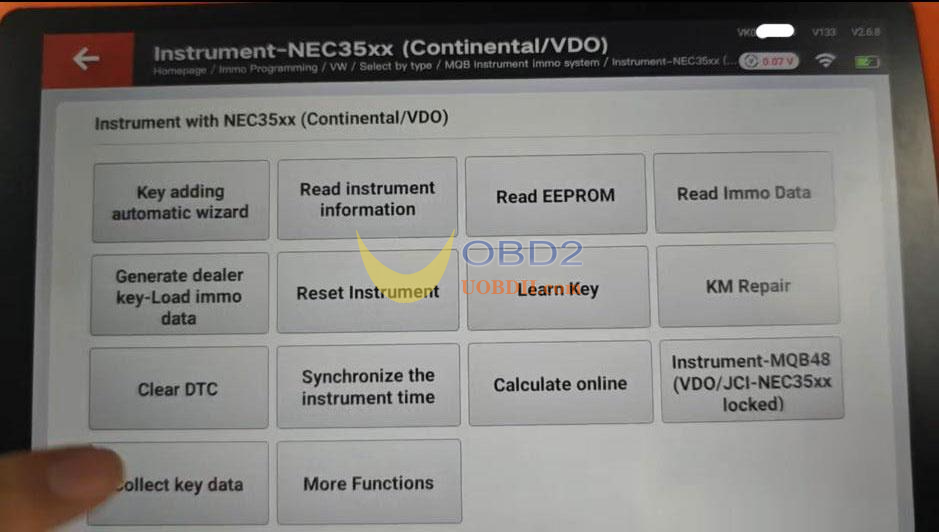

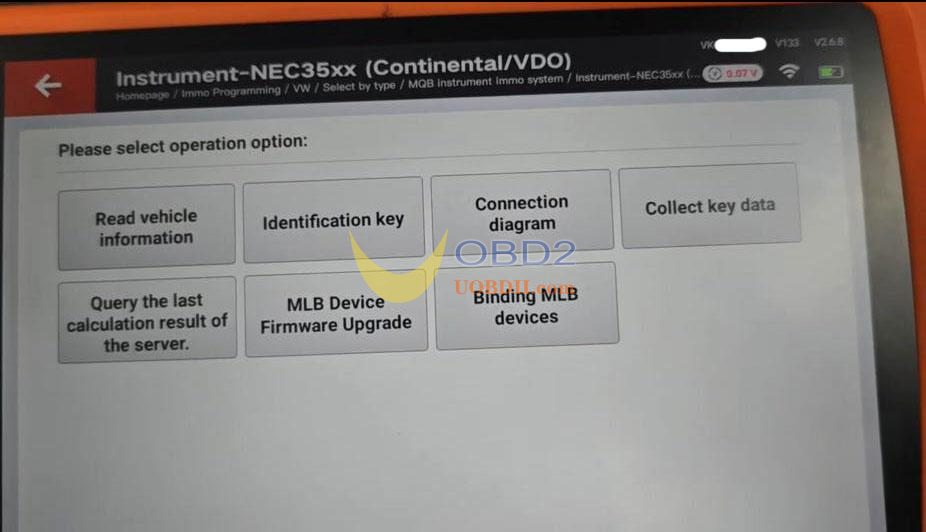

Menu path:

IMMO Programming>>VW>>Select by type>>MQB instrument immo system>>NEC35xx(Continental/VDO)>> Collect Key data.

The function requires network connection.

Use Xhorse MLB Tool MQB48 Adapter and Key Tool Plus in 2 Methods Use Xhorse MLB Tool MQB48 Adapter and Key Tool Plus in 2 Methods Use Xhorse MLB Tool MQB48 Adapter and Key Tool Plus in 2 Methods

Method 2: Using file transfer

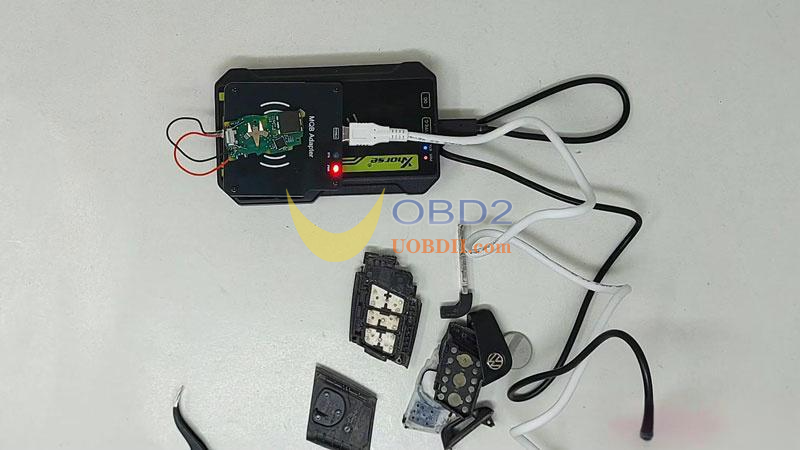

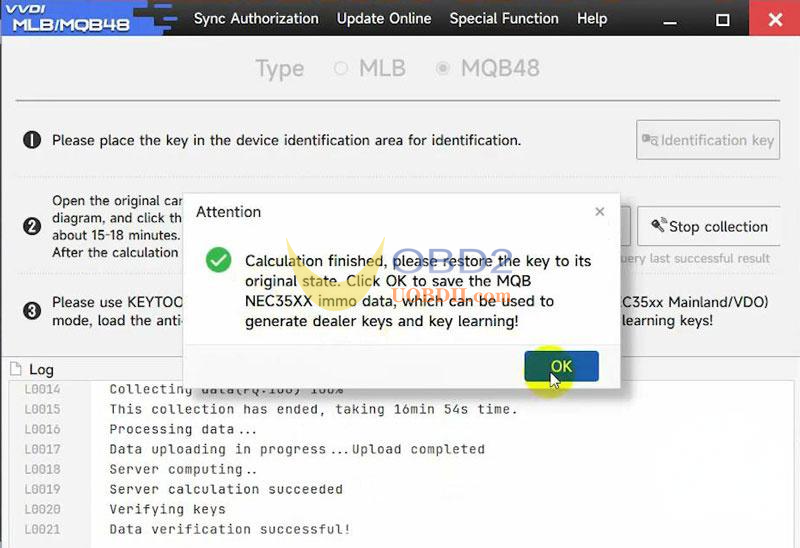

Use Xhorse MQB48 Adapter and MLB Tool to calculate MQB48 key data on PC, then transfer the saved file from the PC to the Xhorse VVDI Key Tool Plus Pad

Use Xhorse MLB Tool MQB48 Adapter and Key Tool Plus in 2 Methods Use Xhorse MLB Tool MQB48 Adapter and Key Tool Plus in 2 Methods

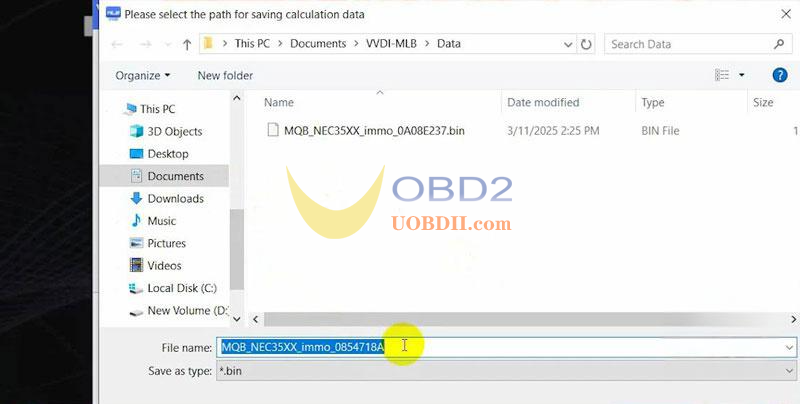

Save the IMMO data. Then transfer file from PC to key tool plus (via USB or Xhorse iCloud data center).

Use Xhorse MLB Tool MQB48 Adapter and Key Tool Plus in 2 Methods

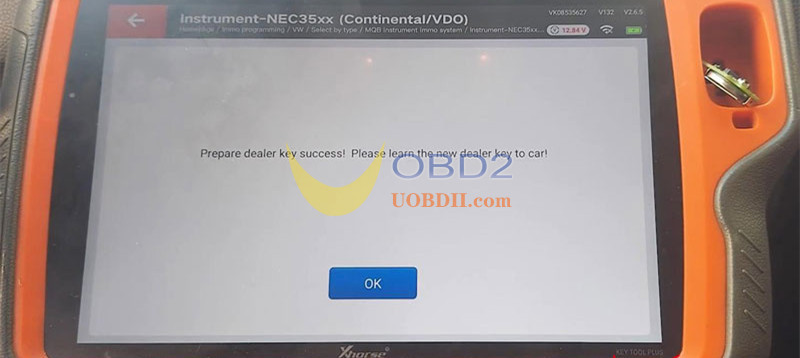

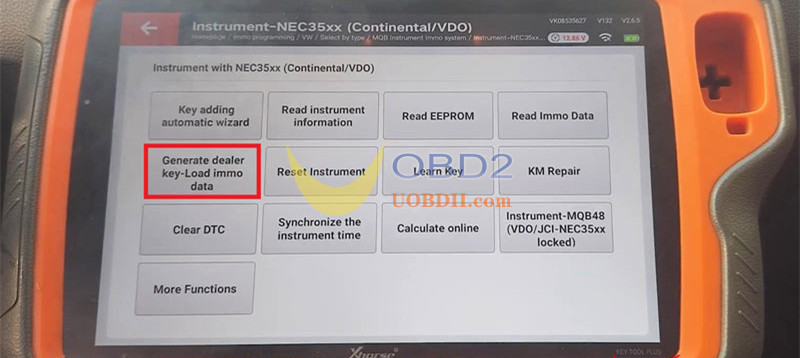

Go to MQB48 menu in the Key Tool Plus, then load IMMO data to generate dealer key and learn key.

Use Xhorse MLB Tool MQB48 Adapter and Key Tool Plus in 2 Methods Use Xhorse MLB Tool MQB48 Adapter and Key Tool Plus in 2 Methods Use Xhorse MLB Tool MQB48 Adapter and Key Tool Plus in 2 Methods

In conclusion:

Recommend to use method 2 for quicker processing.PC software calculation is much faster than Xhorse Key Tool Plus Pad.
