OBDSTAR RH850/V850 Adapter Kit Support List for G3 and DC706

Diagzone Xdiag Subscription Renew, LAUNCH LTR-01 RF Sensor, Thinkdiag Renew , Scania SDP3 Installation

The OBDSTAR RH850/V850 Adapter Kit will be available in mid-May. It is compatible with the OBDSTAR X300 Classic G3 and DC706 ECU Tool, and supports Volkswagen MQB48-5A, Ford/Lincoln 202 AKL, Nissan/Renault AKL, FCA Key Programming, and R7F7016863 & R7F7016843 airbag reset. All data read is unencrypted and can be used with third-party devices.

Check more details below.

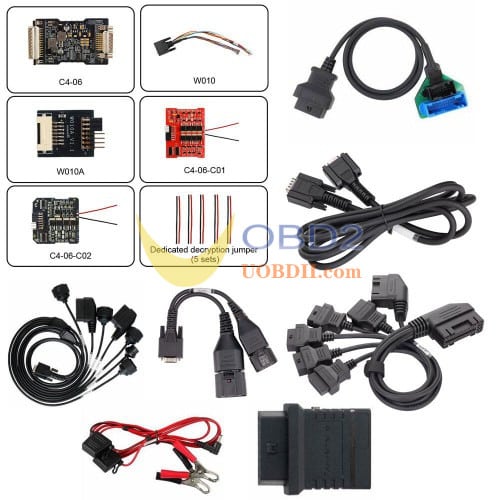

RH850/V850 Adapter Kit Introduction:

Including Package+ function+ support model+ compatible device+ price

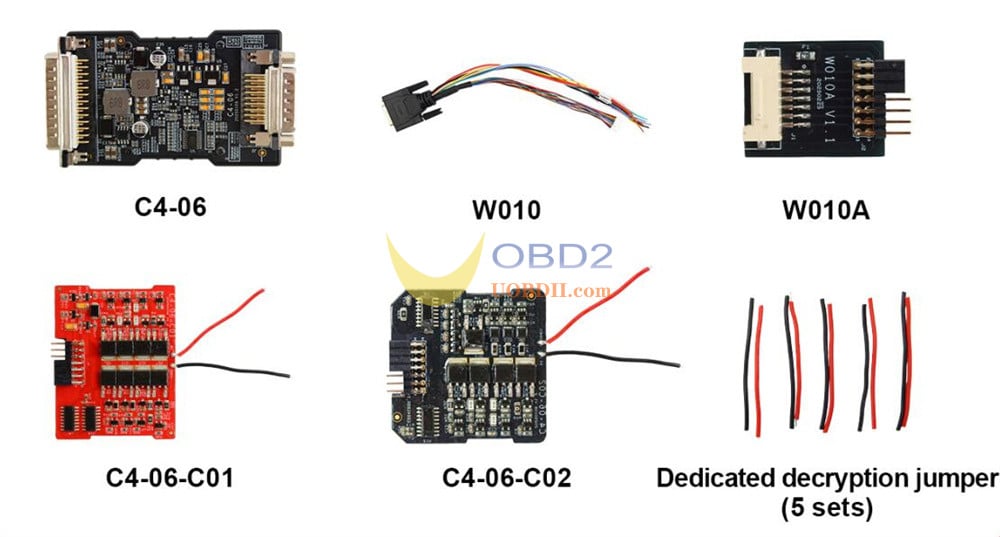

Item No.	Accessories	Image	Description/ Supported Models	Compatible device	Retail Price (US dollars)
1	C4-06		RH850/V850 Adapter Kit for Airbag Reset, IMMO data/Pincode Read (Dashboard, BMC, ELV etc)	G3	$59.00
	W010
	W010A
	C4-06-C01
	C4-06-C02
	Dedicated Decryption Jumper (5 sets）
2	MQB Collector		Collecting ELV/TCM authentication data through the dashboard connector	G3	$12.00
3	ECM-001		Reading IMMO data, ECU flasher DCM6.2V MED17.5.25 MED17.5.21 ME17.5.22 EDC17C64	G3/DC706	$59.00
4	TCM-KIT 1		Reading IMMO data, ECU flasher DQ200 (TCM-001) DQ250 (TCM-002) DL501 0B5 (TCM-003) DL382 (TCM-004) DQ380/DQ381/DQ500 (TCM-005) VL381 (TCM-006) VL300 01J (TCM-007) Note: TCM-001, TCM-002 and TCM-005 connectors can be purchased separately, $15 per connector.	G3/DC706	$59.00
6	TCM-030		Reading IMMO data, ECU flasher DQ400E		$15.00
7	M002		Power Cable Used to draw power from the battery when reading ECM/TCM data in the car.		$15.00
8	TCM-MAIN+ Converter V2		Used for directly reading TCM data on the vehicle		$15.00

Note: The kit must be used with the OBDSTAR MP001 multi-functional programmer for full functionality.

OBDSTAR RH850/V850 Adapter Support List:

Volkswagen MQB48-5A key programming (component removing free) (MQB49-5C under development)
D70F3529 Dashboard	1. Support read all data; 2. Support IMMO data decryption (VIN/CS/power class, etc.); 3. Support BLADE AKL synchronization code calculation (G3 Support dashboard/ECM/TCM data reading and IMMO data decryption by BENCH/BOOT); Support ECM models (with dedicated cables): DCM6.2V, EDC17C64, EDC17C74, ME17.5.22, MED17.5.21, MED17.5.25, SIMOS18, etc. Support TCM models (with dedicated cables): AQ250, DQ200, DQ250, DQ380, DQ381, DQ400, DQ500, etc. 4. Support PROXIMITY AKL synchronization code calculation (calculated by dashboard, ECM, TCM and ELV IMMO data); ELV IMMO data acquisition method 1: Read D70F3624/SPC560 ELV data and decrypt IMMO data through MP001 and RH850/V850 adapter. ELV IMMO data acquisition method 2: Collect ELV authentication data from dashboard connector through MQB collector, calculate ELV IMMO data by dashboard, ECM and TCM IMMO data. 5. Support synchronization code reading from worked key; 6. Support continental VDO dashboard IMMO data reading by OBD; 7. Support MQB used TCM replacement (upcoming upgrade); 8. Support MQB used ECM replacement (upcoming upgrade); 9. Support KYDZ keys.	need all accessories (choose one from No.4 or No.5)
D70F3537 Dashboard
D70F3525 V1 Dashboard
D70F3525 V2 Dashboard
D70F3525 V3 Dashboard
D70F3526 V1 Dashboard
D70F3526 V2 Dashboard
D70F3526 V3 Dashboard
D70F3526 V4 Dashboard
D70F3532 V1 Dashboard
D70F3532 V2 Dashboard
D70F3535 Dashboard
D70F3426+95128 Dashboard
R7F701401 Dashboard
R7F701402 Dashboard
R7F701407 Dashboard
D70F3624 ELV

Ford/Lincoln 2021-key programming (including AKL)
R7F701573 BCM	F-150, Bronco, Nautilus, Navigator, and other 2021-models	need the first set of accessories
R7F701053 BCM	New Mondeo, Mustang Mach-E, Focus, Corsair, EVOS, RANGER, and other 2021-models

Nissan/Renault key programming (including AKL)
R7F7010193 HFM	1. Nissan: SYLPHY/SENTRA B18, X-TRAIL/ROGUE T33, JUKE 2020-, PATHFINDER 2021-, QASHQAI 2021-, NOTE E-POWER, R53, NP300 2019-, etc; 2. Renault: ARKANA, CAPTUR II, CLIO V, MEGANE IV PH2, NEW ZOE, SANDERO 2020-, TRAFIC 2022-, ZOE2, KANGOO III, Talisman Ph2, ect; 3. Dacia: JOGGER, SANDERO, LOGAN 2020- etc.	need the first set of accessories
R7F7010253 HFM
R7F701056 BCM
R7F701057 BCM
R7F701042 BCM

FCA key programming (upcoming upgrade)
R7F701057 BCM	Fiat 500Е, Alfa Romeo Tonale, Alfa Romeo Giulia, Alfa Romeo Stelvio, Jeep Renegade, Fiat 500X, Dodge Hornet, etc.	need the first set of accessories

Airbag Reset
R7F7016863	Subaru (data R/W + crash erase)	need the first set of accessories
R7F7016843	Toyota, Lexus (data R/W + crash erase)
R7F7016443	Toyota, Lexus (data R/W + crash erase)
R7F701330A	Volvo, Polestar, Geely, Lynk&Co, Polestar, Toyota, Mazda, Land Rover, Jaguar, Tesla (supports data R/W, supports crash erase partially, supports third-party manual crash erase)
R7F7010643	Dongfeng, Changan, Jihu, Chery, Hongqi, Ford/Lincoln, Great Wall, Land Rover Jaguar, GAC Trumpchi, Xiaopeng, Tesla (data R/W + crash erase(except Tesla) ).
R7F701A033	Dongfeng, Jihu, BAIC, Changan, FAW, Ford/Lincoln, Geely, Great Wall, Haima, Hongqi, Jianghuai, Peugeot, Wuling, Tata, GAC Motor, WM Motor, Xiaopeng, Zotye, etc. (data R/W + crash erase)
R7F701042（upcoming upgrade）	Suzuki, Volkswagen (data R/W +crash erase)
