Today, we’re demonstrating how to program smart keys for the 2022 Chery Tiggo 8 Plus with the Lonsdor K518 PRO key programmer.

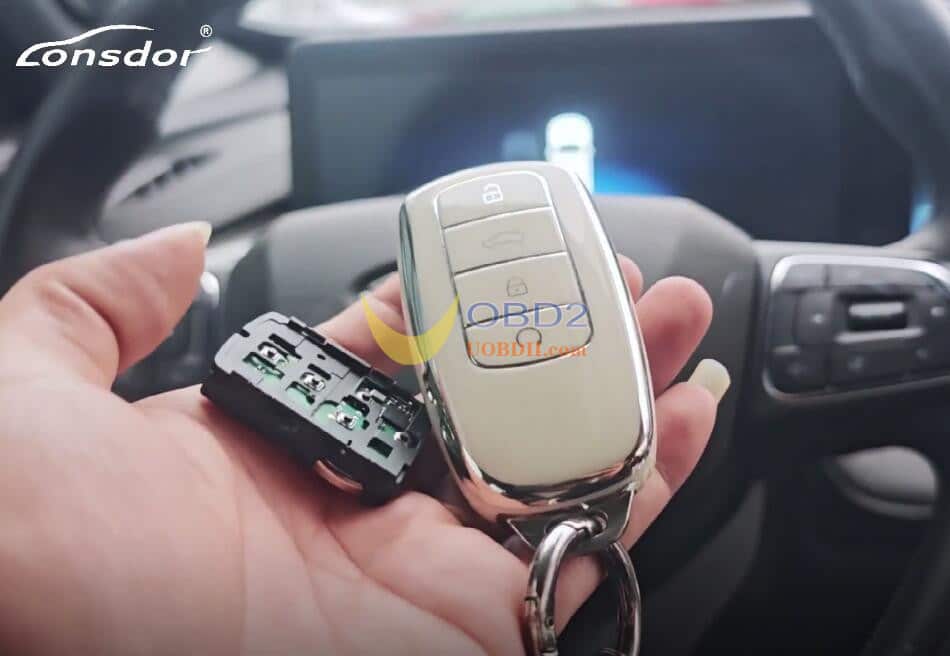

We have two keys on hand: one is the original car key (has key shell), and the black one is the new key to be programmed.
Step-by-Step Guide:
Select IMMO &Remote
Choose Chery→ Select by Type → PIN Code.
Read the PIN code by selecting “Read PIN of Autonomous IMMO”.
Pay attention to the on-screen note
The anti-theft authorization code is calculated based on the obtained vehicle VIN code. If the VIN code has been modified, the calculated authorization code will be incorrect.
Press [OK] to continue, and press [Cancel] to return.
If the vehicle is asleep, wake it up by pressing the hazard lights, start button, or opening the doors.

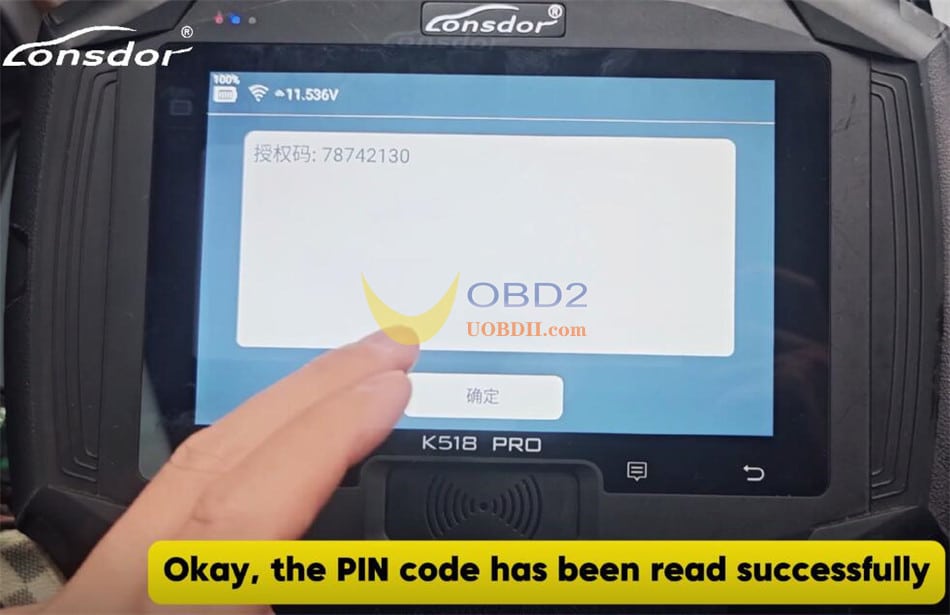

Once active, successfully read the PIN code.
Key Programming

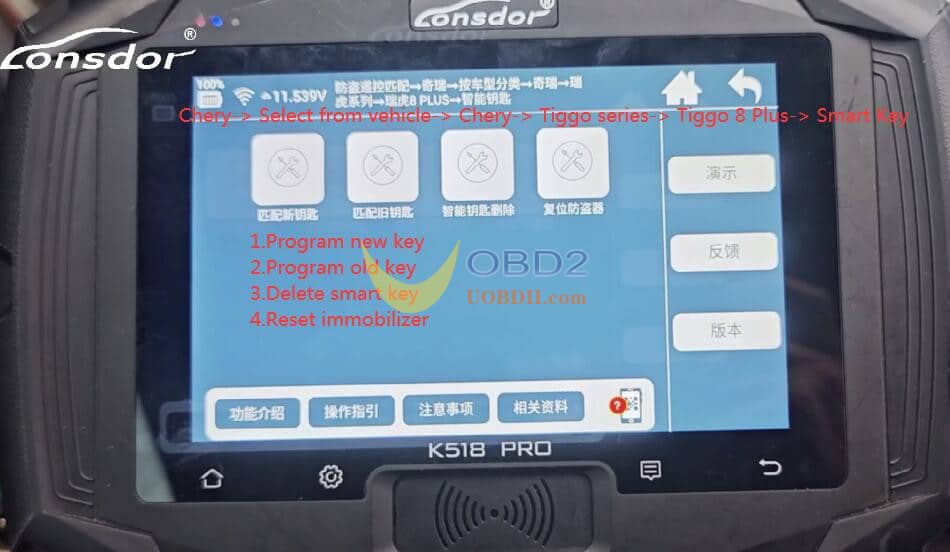

Choose Chery→Select from vehicle-> Tiggo Series → Tiggo 8 Plus → Smart Key.
Available options:
Program New Key
Program Old Key
Delete Smart Key
Reset Immobilizer

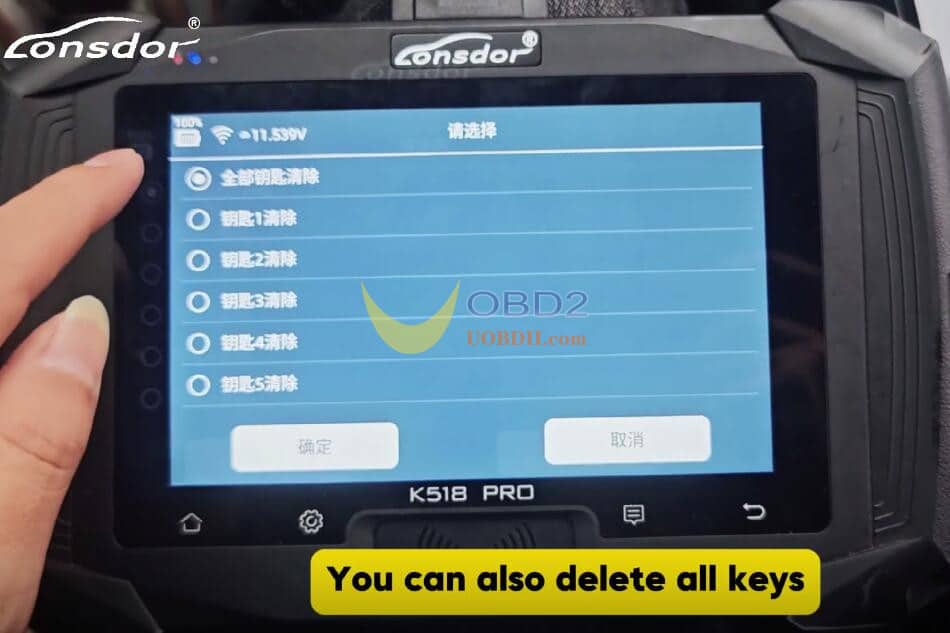

First, delete all smart keys to clear the system.

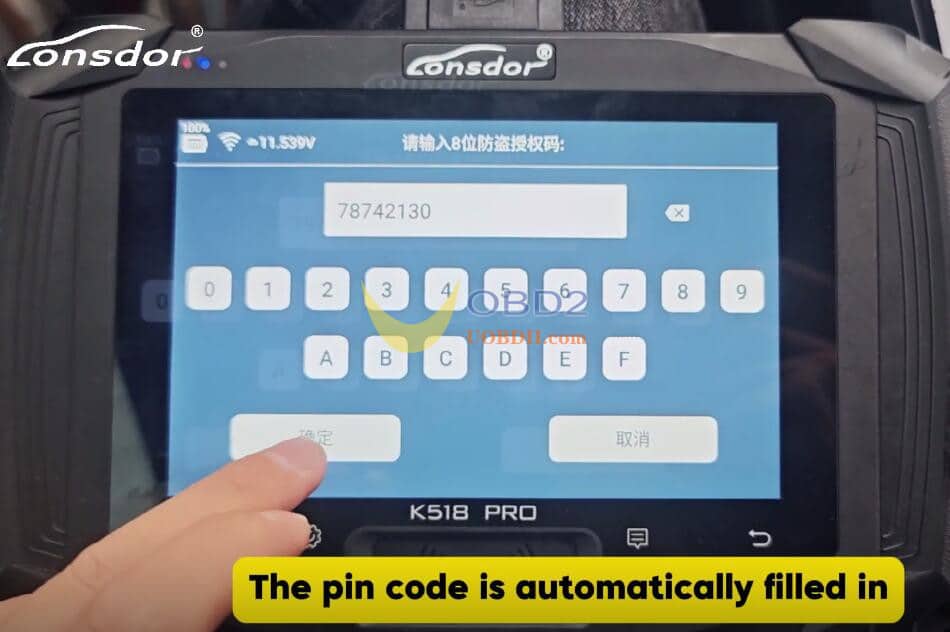

The pin code is automatically filled in

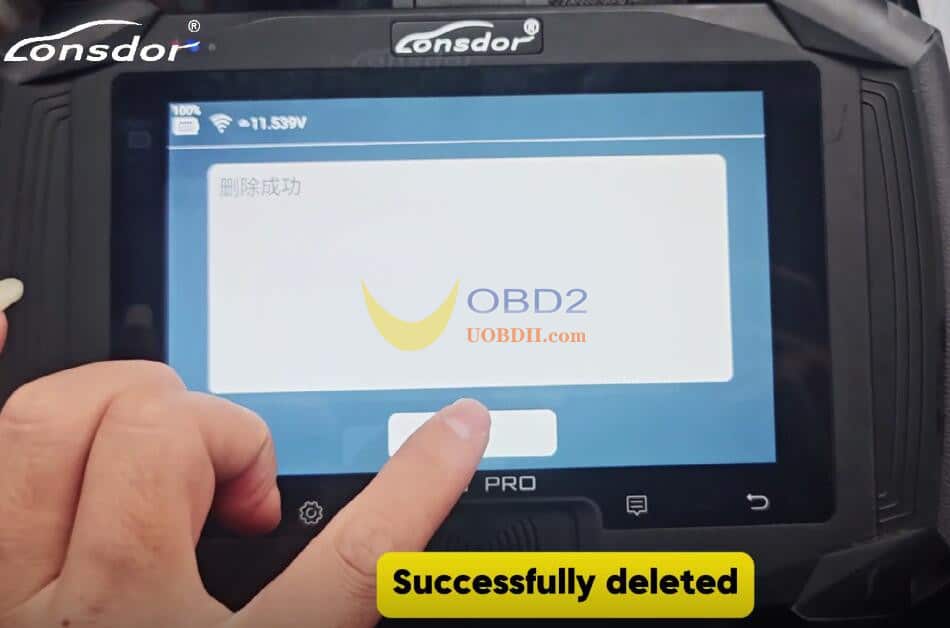

After deletion, the old key cannot start the car anymore.
Programming New and Old Keys
Select Program New Key.

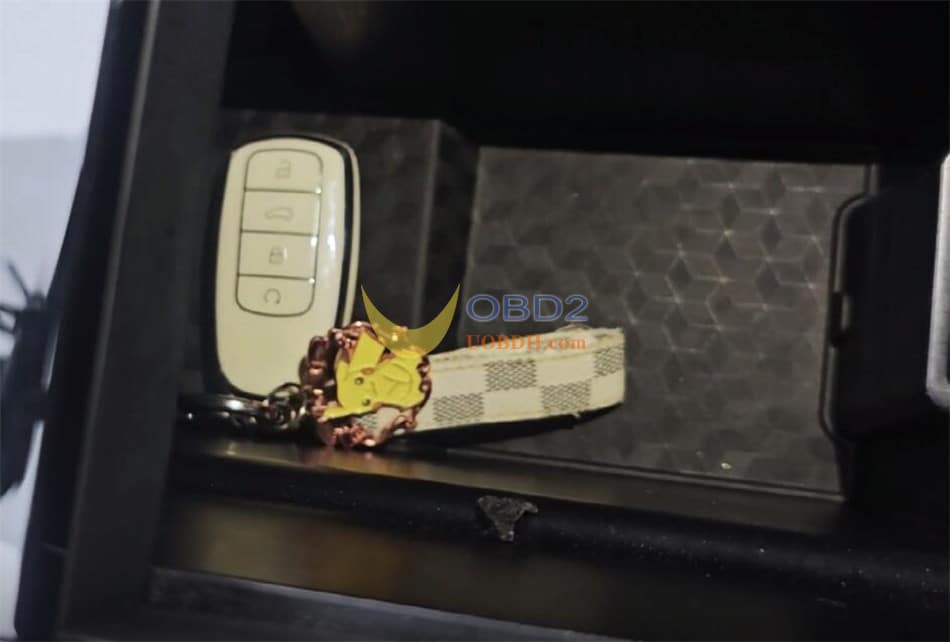

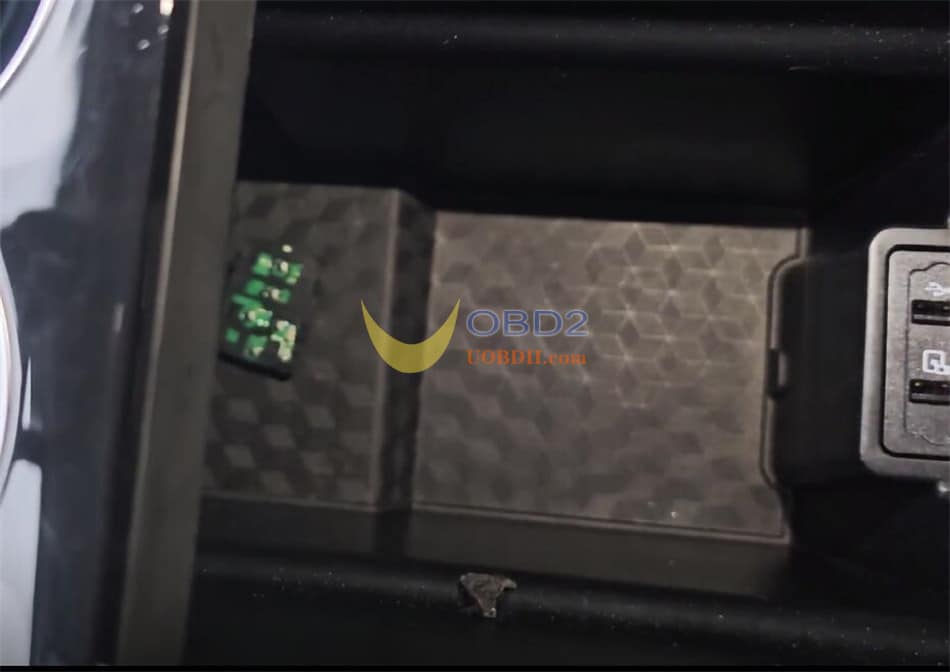

Place the original key into the sensing area (behind the glove box near the gear shifter).
Click OK, and the original key programming will complete.
Turn off the ignition.
Next, place the new key into the sensing area and select Program New Key
Click OK to finish programming the new key.
Testing
Test both the original and the newly programmed key:
Lock and unlock the doors.

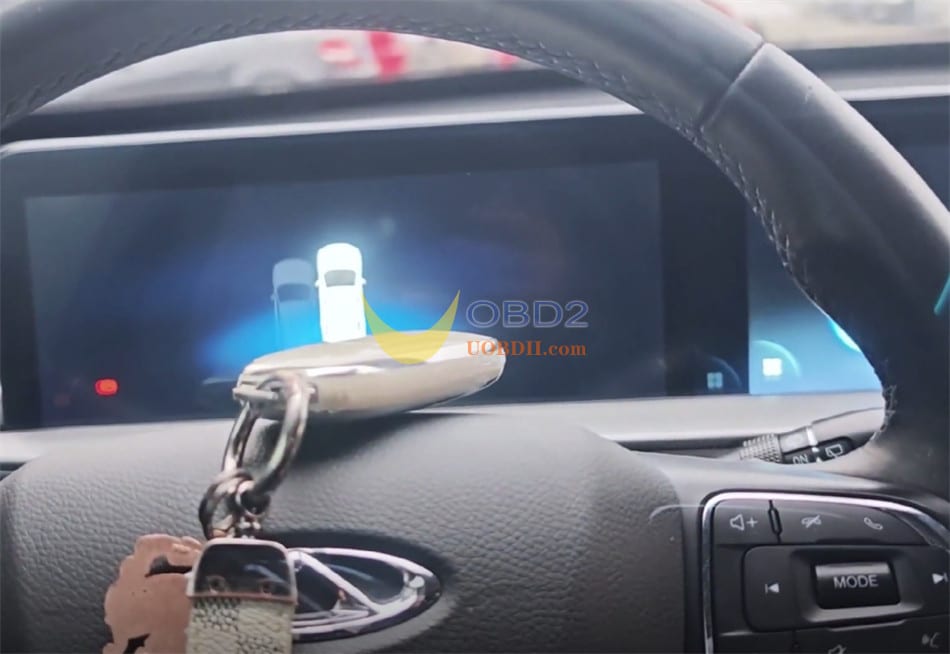

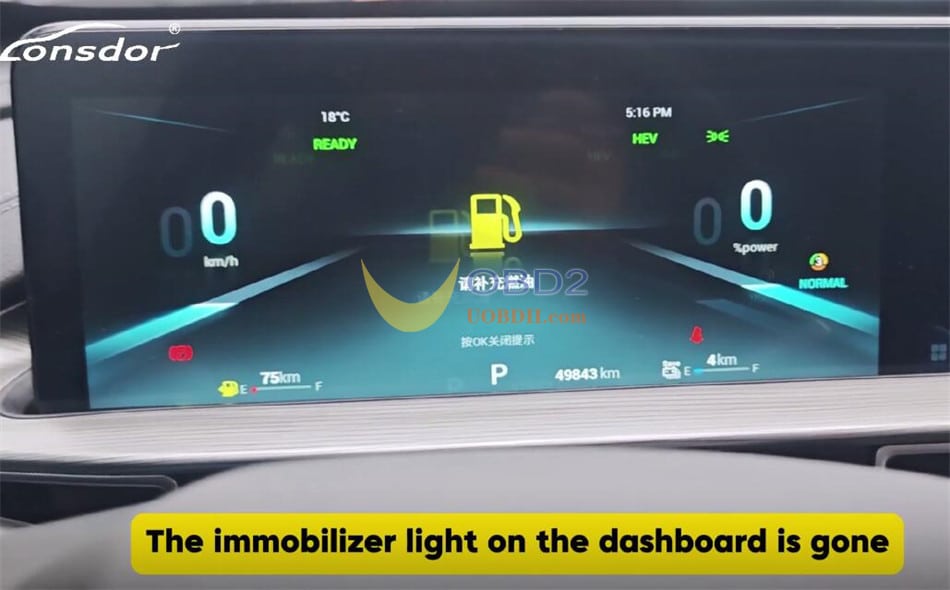

Start the vehicle.
Both keys worked perfectly after programming.
Result: Programming the 2022 Chery Tiggo 8 Plus smart key with the Lonsdor K518PRO was successful!
