Here is the instruction show you guide on how to repair Doosan stage v egnine P011E coolant temperature plausibility fault.

Preparations:

Doosan Data Monitoring System DMS-5 DMS-3 Free Download

2023 Doosan Diagnostic Tool DDT & G2 Scan Software Free Download

Doosan uVIM Diagnostic Tool

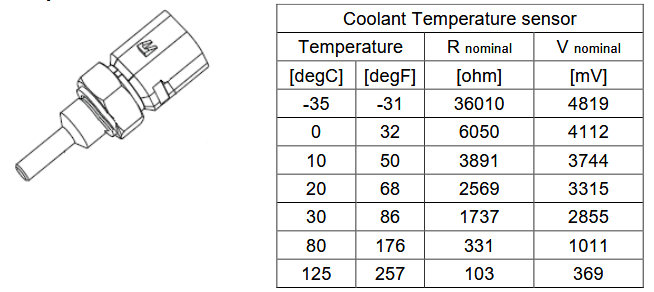

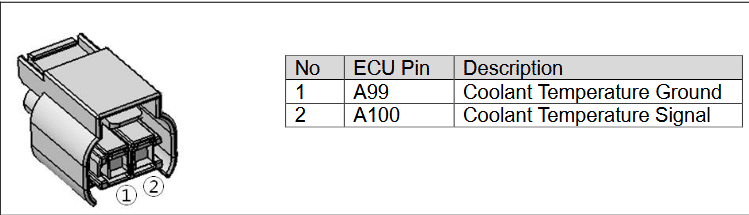

1) Overview

“E” SPN-FMI  E000110-10

Reason:

1 Thermostat problem (broken or normally open)

2 Electrical problem (Coolant temperature sensor connector, Wiring harness coolant temperature sensor to ECU, Faulty Coolant temperature sensor)

3 Electrical problem (Faulty ECU, ECU connector)

Effect:CE lamp ON Torque Reduction 1(Mild)

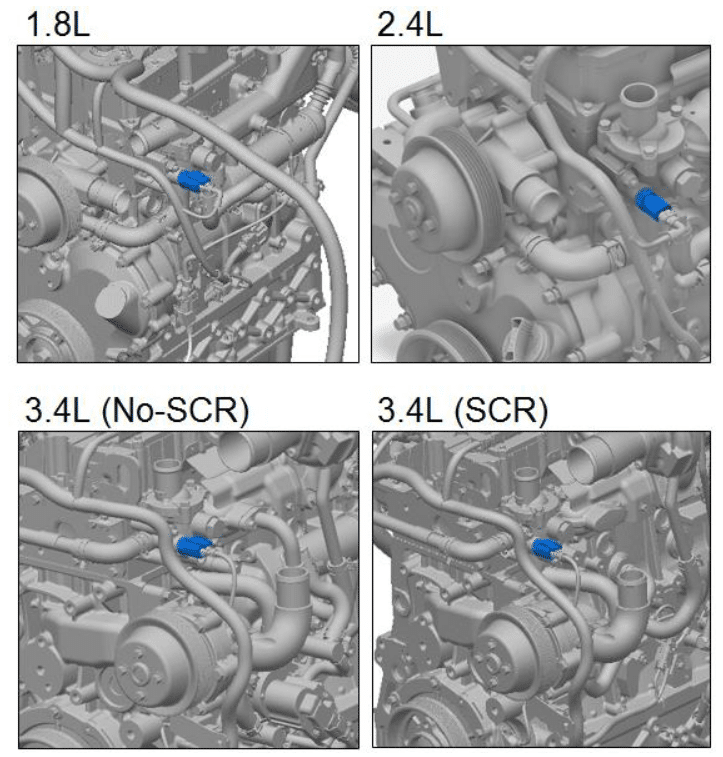

2 Component Location

3 Condition for Running Diagnostic

1 Engine running (The diagnostic is started after engine running 120sec.)

2 Coolant temperature < 30degC at starting

3 Engine speed > 1300rpm

4 Condition for Setting the Fault Code

If the coolant temperature is not higher than the threshold during restricted condition, fault code

is raised. (Example : Coolant is not increased 5degC at soaking temperature 0degC during

1000sec)

5 Condition for Clearing the Fault Code

If the coolant temperature is higher than the threshold during restricted condition, fault code is

Cleared

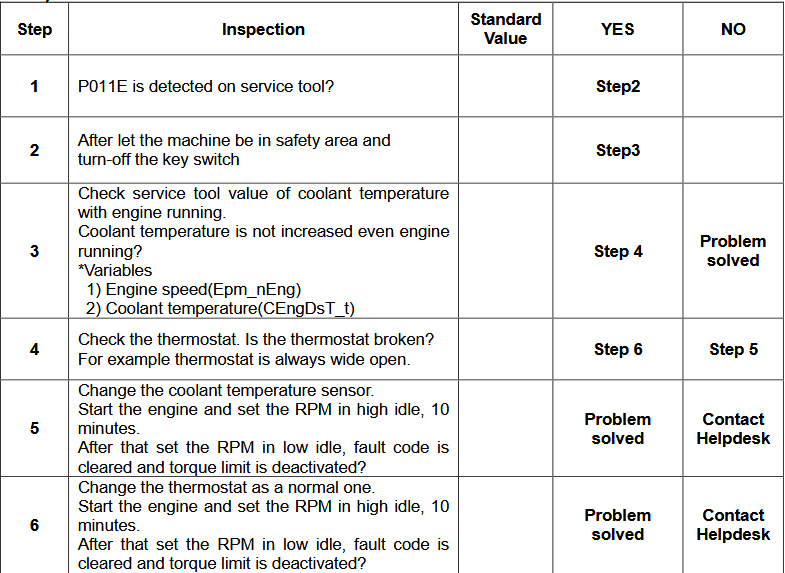

6 Check List
