Here is the instruction show you guide on how to remove HV battery cooling fan for HINO 155, 155h, 195, 195h series, equipped with J05E engine
Related Contents:
Nexiq USB3 Diagnostic Adapter
2025.05 HINO Diagnostic Explorer DX3 Software Free Download
HINO Trucks EPC Electronic Parts Catalog 2018 2016 Free Download
Steps:
1 REMOVING THE PCU
Reference: HYBRID, HYBRID SYSTEM, PCU, REPLACEMENT,
REMOVING THE PCU (Page 3-18)

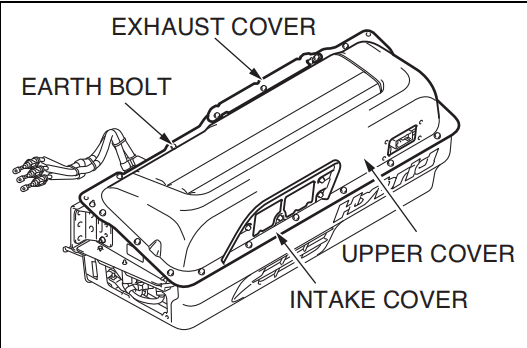

2 REMOVING THE INTAKE COVER, UPPER COVER AND EXHAUST COVER

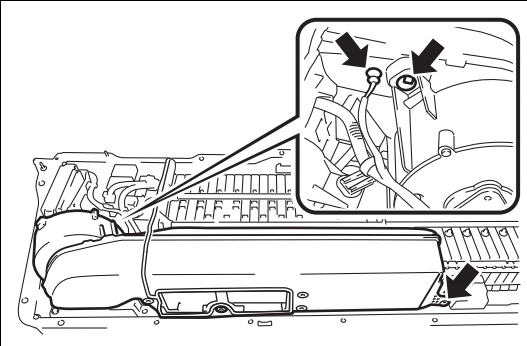

(1) Unfasten the bolts (20 pcs.), earth bolt and nuts (4 pcs.) and remove the intake cover, upper cover, exhaust cover and gas ket.
! CAUTION
The old gasket is not reusable.
3 REMOVING THE HV BATTERY COOLING FAN
(1) Disconnect the intake air temperature sensor.
(2) Unfasten the clips (2 pcs.) and remove the intake duct.

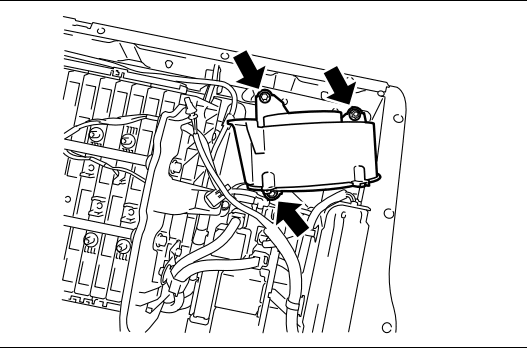

(3) Unfasten the bolts (2 pcs.) and nuts to remove the HV battery cooling fan from the battery carrier.

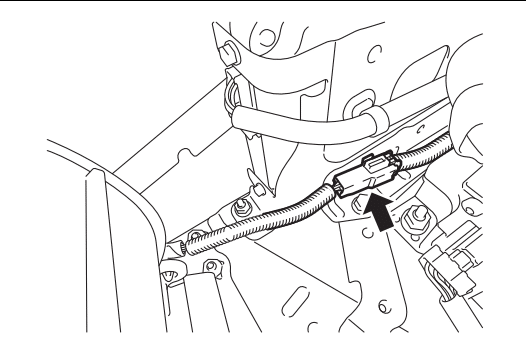

(4) Disconnect the connector and connector clamp, and remove the HV battery cooling fan.
More case for HINO please refer to:HINO Trouble Repair
