Here is the instruction show you guide on how to remove differential gear for Fendt 900 Vario COMIII.

Preparations:

AGCO EDT 2025

AGCO 2×4 CANUSB

Fendias 2024v2

NOTE: The work was carried out on a model for greater clarity.

Carry out the following tasks on both sides.

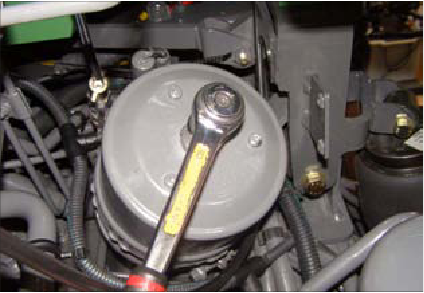

Unscrew the hand brake release screw on the Tristop cylinder by turning counterclockwise until it becomes noticeably more difficult to turn, then tighten as far as it will go with a spanner (SW24)

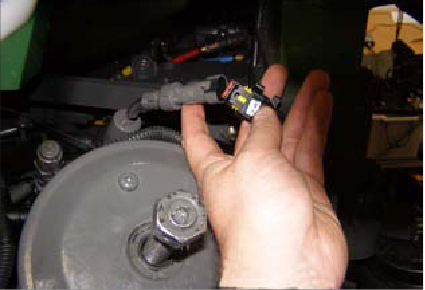

Unplug the air hoses and sensors

Remove Tristop cylinder

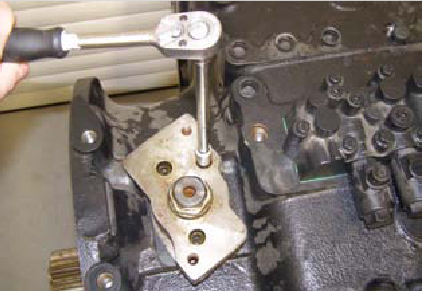

Remove lower part of brake cylinder

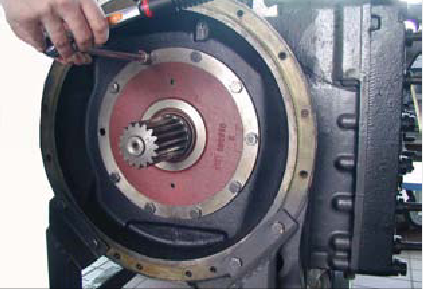

Remove brake plate hex bolts

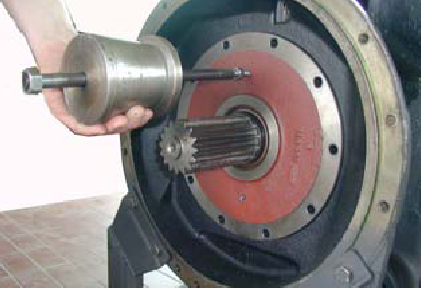

Remove brake plate using a slide hammer puller

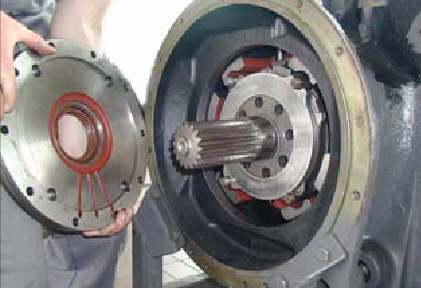

Remove brake plate

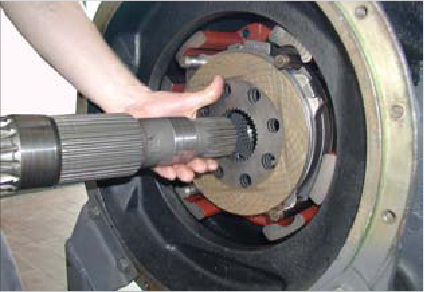

Remove shaft

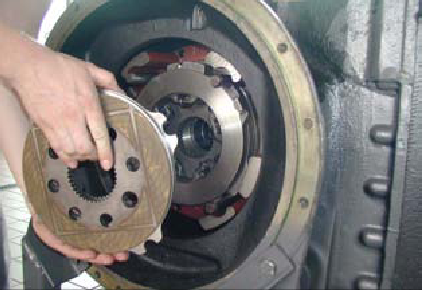

Remove front disc pack

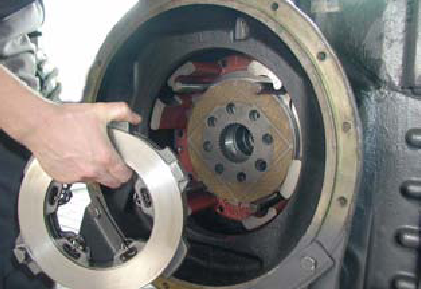

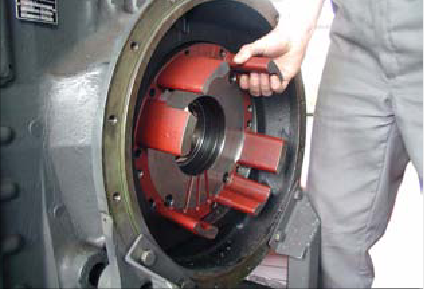

Remove actuator plate and rear disc pack

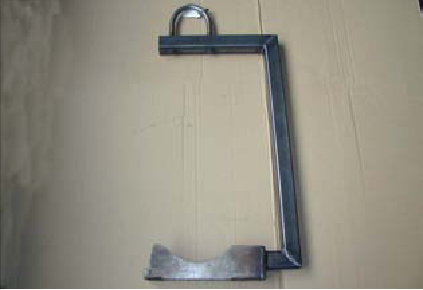

Attach hoisting gear to differential gear

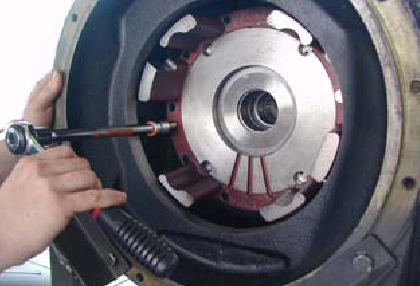

Press off bearing flange with jack screws

Remove bearing flange

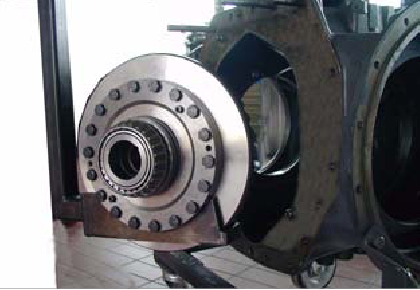

Remove differential gear using the hoisting gear
