How to Install and Activate FoxFlash Software?

Posted on May 13, 2025May 13, 2025 by VCDS
install foxflash ecu software 1

Diagzone Xdiag Subscription Renew, LAUNCH LTR-01 RF Sensor, Thinkdiag Renew , Scania SDP3 Installation

FoxFlash installation guide

How to use foxFlash Manager and foxFlash software

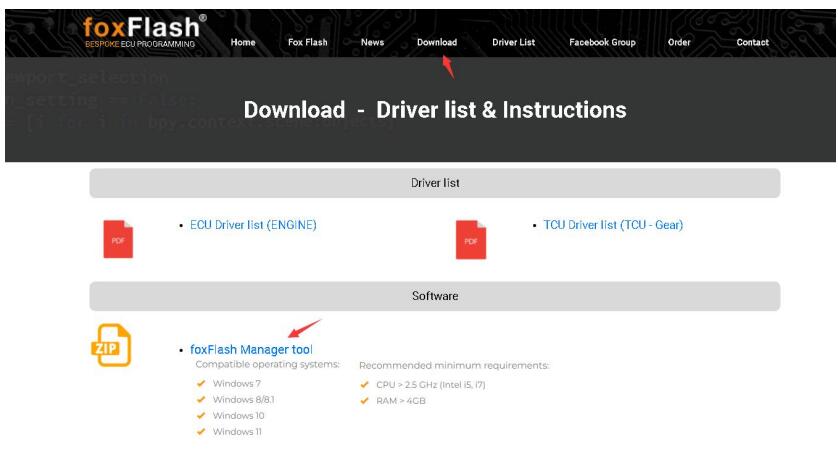

1 go to https://www.dfb-technology.com/download.html download foxFlash Manager app
install foxflash ecu software 1

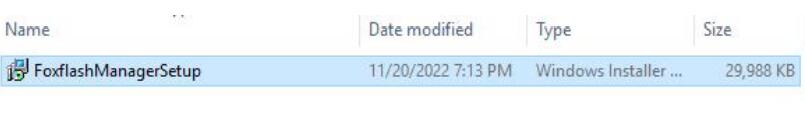

2.install this software on your laptop
install foxflash ecu software 2

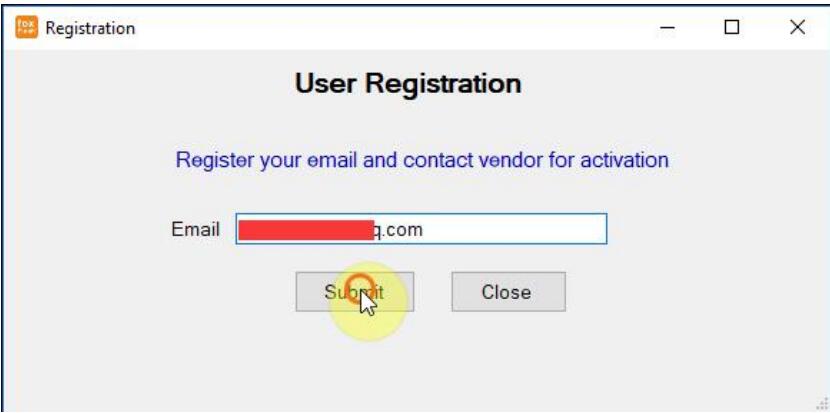

3 register this app with your email
install foxflash ecu software 2

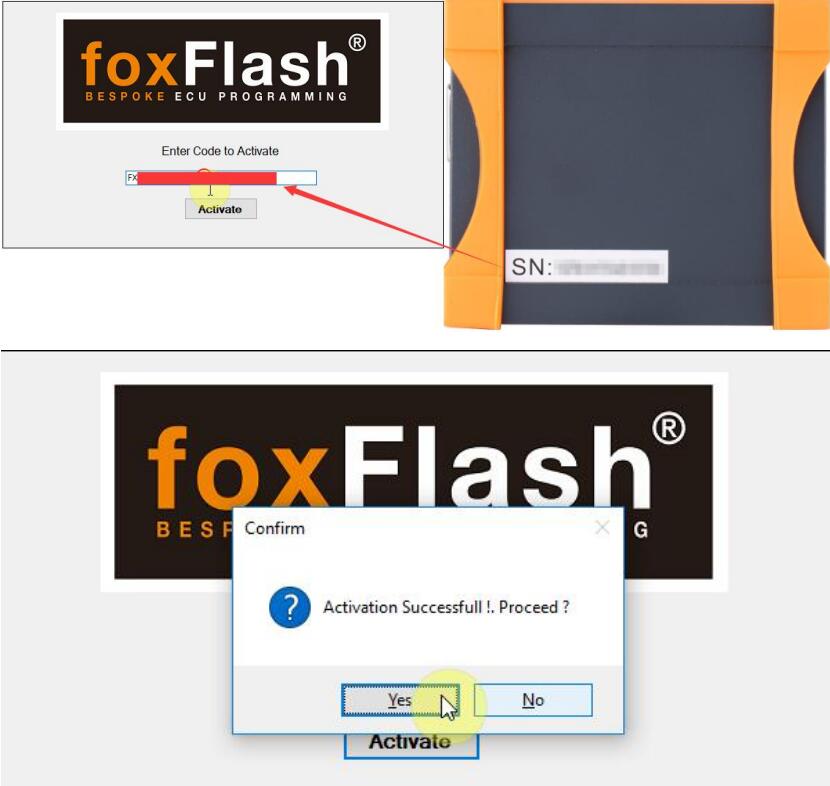

4 input your code which tie on your device, don’t spead yours sn to internet, or others guy will try to stolen your tools password
install foxflash ecu software 3

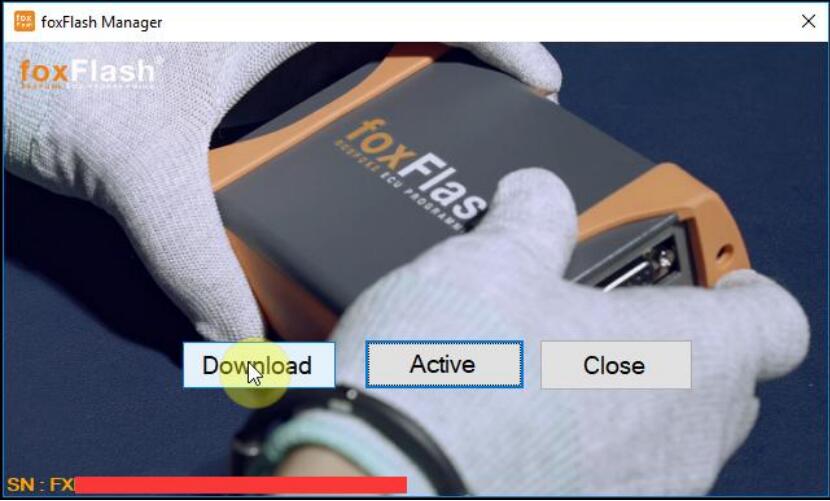

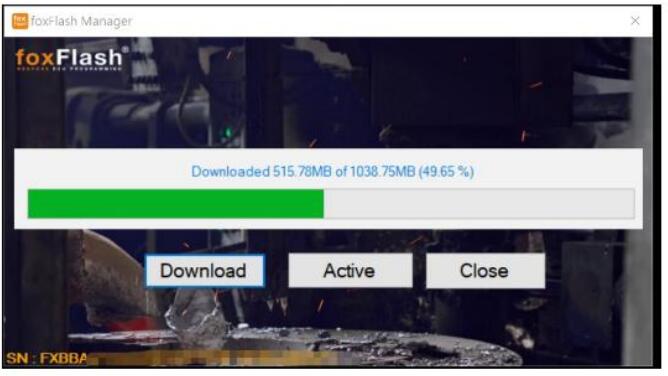

5 connect your foxflash tool to laptop via usb cable then click the download button which in foxFlash app inside
install foxflash ecu software 4
install foxflash ecu software 5

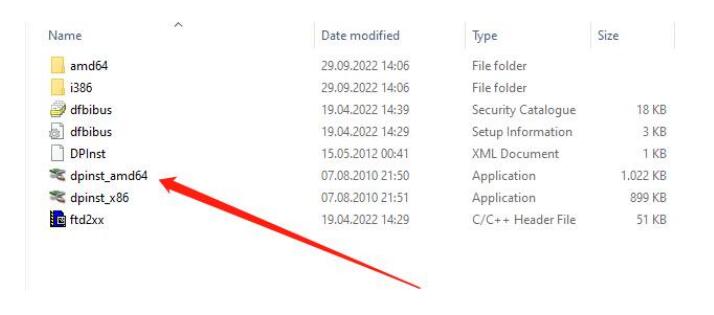

After download finish,pls open the folder C:\Program Files (x86)\FoxFlashManager\foxflash\DFB Technology\DFBTech_DRIVER
Install the drivers
install foxflash ecu software 6
6 disconnect your foxflash tool , then plugin the usb again

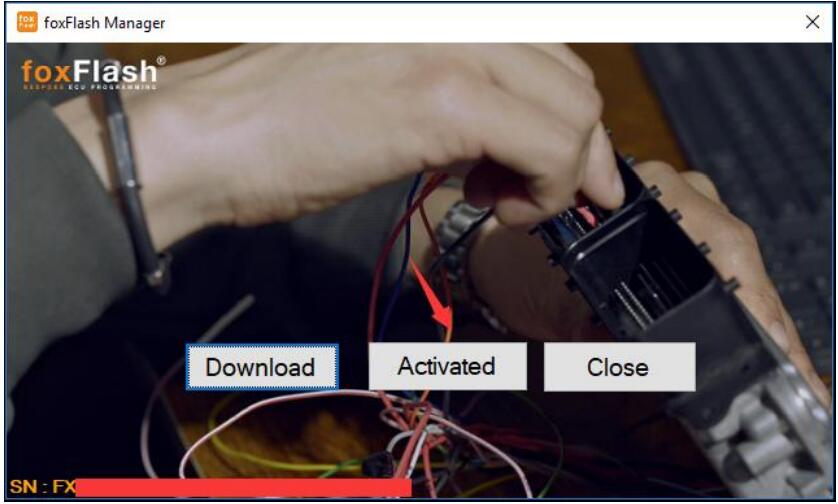

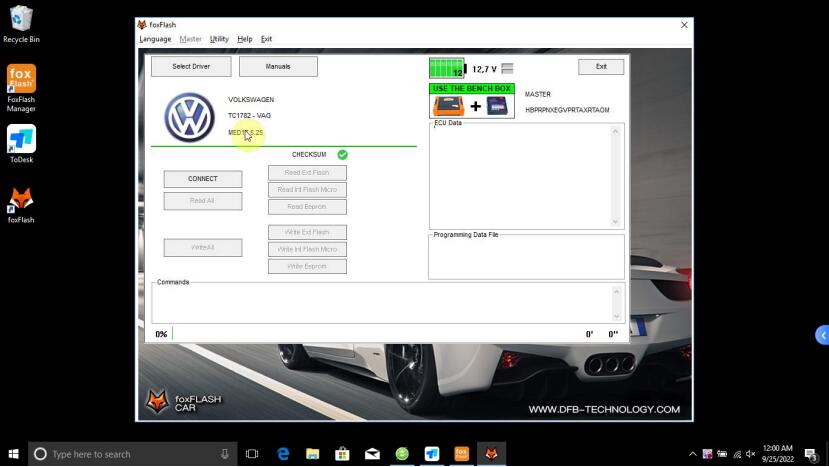

7 click the foxflash manager app active button till actived, then run the foxFlashappin your desktop, then input the password at the windows, click login
install foxflash ecu software 7
8: Close your software: click the close button on foxFlash Manager app, then click the foxflash exit button, you totally close ours tool and software .
9: NOTE: always run foxflash manager app each time when you need use ours tool.
Run it then click the active button, it will keep let the tool access ours server . Download just need do at the frist time you don’t have the software.
install foxflash software 8

if you need foxflash, go to https://www.chinaobd2.com/wholesale/foxflash-ecu-programmer-7842.html
