VBOX-VOLVO XC90 Diagnostic Tool

Reasons of Buy VBOX-VOLVO XC90 Diagnostic Tool

Software System Support: Window XP/7/8/10
Update: Free Update website( If add additional special function on this device, update may charges)
Support Volvo Till Year 2015
Language: English

Descriptions of VBOX-VOLVO XC90 Diagnostic Tool

VBOX-VOLVO can offer customer remote on-line service, including VOLVO whole vehicle, parts manual, technical guide, whole vehicle circuit diagram, repair services. Meanwhile, customer is available to download VBOX-VOLVO APP,2016 VOLVO XC90 whole system faulty diagnostic, including read the faulty code, read the history code, read ECU information, read VIN information, clear faulty code. We will publish special diagnostic service of VOLVO XC90 afterwards basic on customer demand.

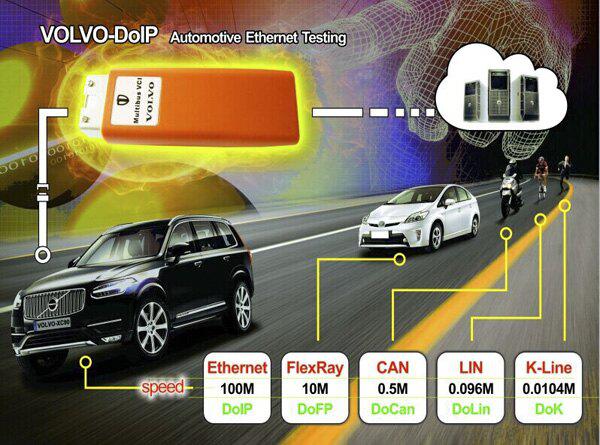

xc90 connection display 1
xc90 connection display 2

How to use VBOX-VOLVO XC90 Diagnostic Tool

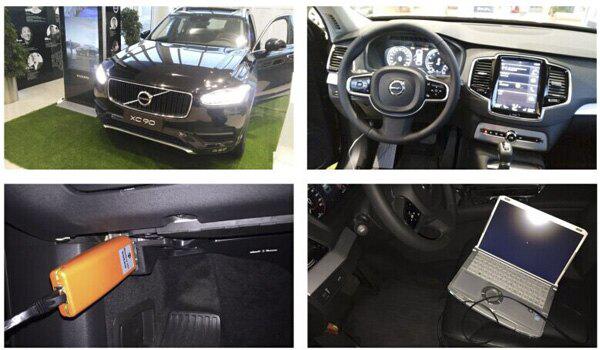

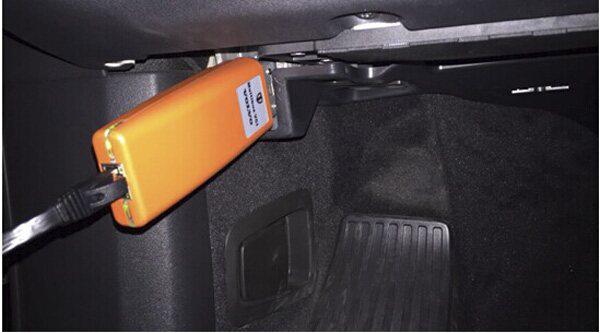

1. Connect to hardware, insert the box into OBD interface, connect the box with internet reticle and computer reticle interface, red light sparkling. You can find the OBD interface on the left side down of the seat.

how to connect xc90

Hardware lights instruction

LED status Status instruction
Red light sparkling hardware working ok
Green light sparkling data communication status

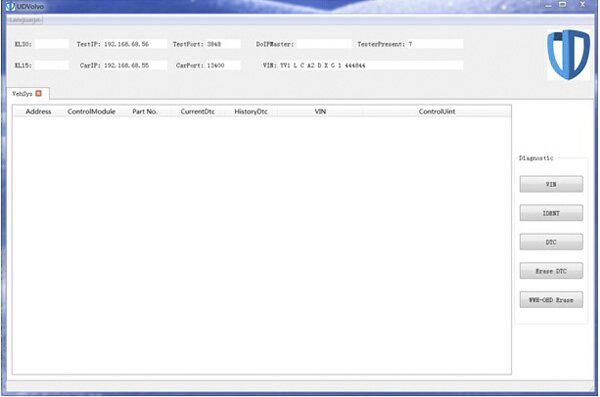

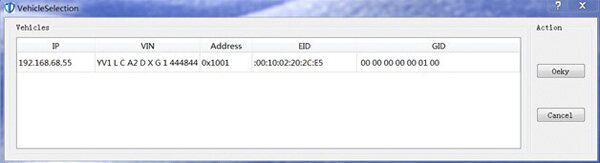

2. UDVOLVO is a free install application, decompression zip package to local computer folder, run the application…/Volvo/ASAMMCD3/UDVolvo.exe press enter after you find your vehicle IP.
installation application

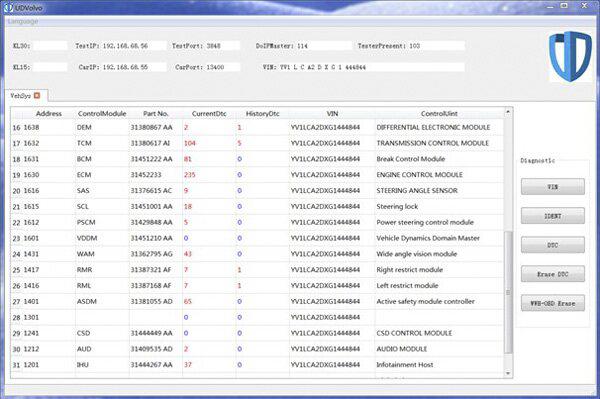

3. Press“Vehicle identification number, read ECU information, read fault number

4. Double press “current fault code number”, enter single ECU
Press“current fault code number or history fault code number”, press the right button on mouse go check for detail information.

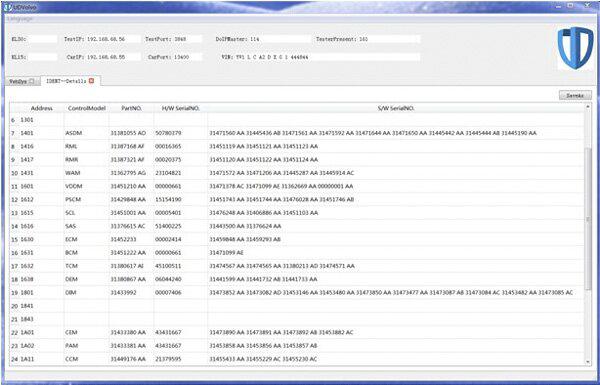

5. Check the detail information.
click detail information

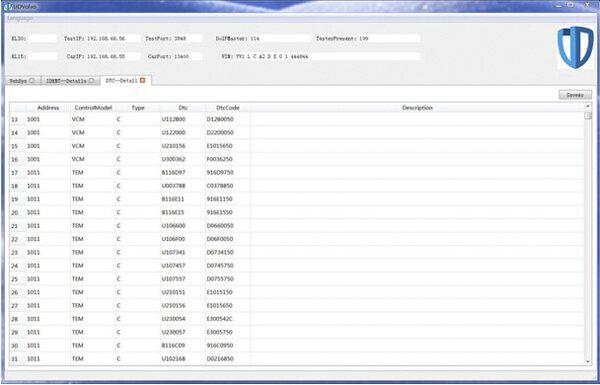

6. Check the fault code number detail information.
click detail information 2

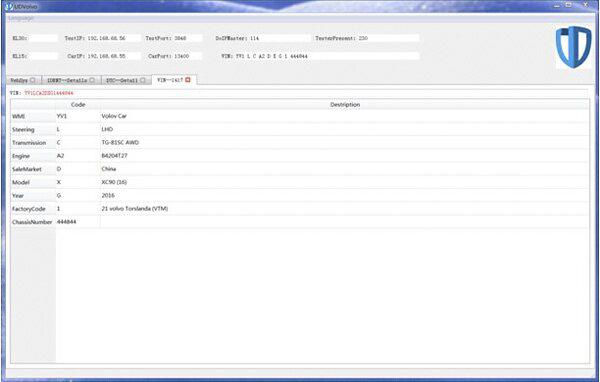

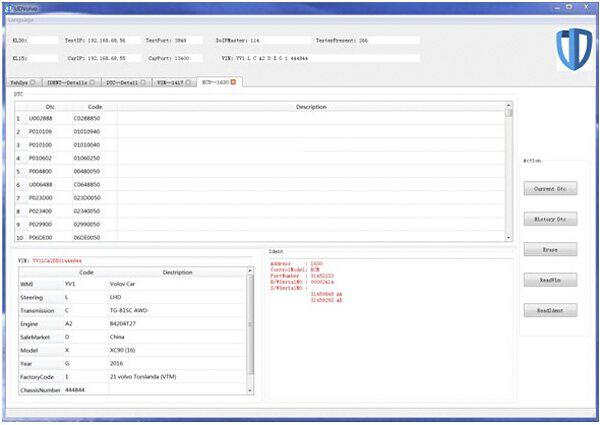

7. Check ECU detail information.
check ecu information

8. Enter ECU read fault code number history fault code number, clean up code number, read vehicle identification number and ECU detail information, press current “current fault code number and history fault code number” to clean up the fault code numbers.
