FVCI is a PASS-THRU device of FCAR. Our product use 3 ARM microcontrollers design, this will make the processing capacity of FVCI stronger and support OEM software better. It supports J2534 protocol, and it will support other protocol for free later. In addition, the hardware of FVCI supports multiply communication manner of DOIP protocol, and it can setup Ethernet(tx_+, tx_-, rx_+, rx_-) and active line to any pin number of OBD2 except for ground pins and power pin.

• Three ARM microcontrollers.
• Three individual physical communication channels for protocols(CAN, single wire CAN, KWP, PWM, VPW, SCI and so on).
• Ethernet converts to OBD2 for DOIP protocol, the pins(tx_+, tx_-, rx_+, rx_-, active line) can set any pin number of OBD2 except for ground pins and power pin.
• Program voltage output between 5v and 20v.
• One Ethernet port.
• One analog input port.



OEM official website

OEM software can download from the official website ?there is not including free software. if you need link to buy the software, please

contact with us, we will send you link , thanks?



1. Software setup

The FVCI tool package is in the CD, or it can download from www.fcar.com.

?1? Double click FVCI_Setup.exe?

?2? Click “Next” button?

?3? Go on click “Next” button?

?4? Click “finish” button. The software setup done.



2. Install .net framework4.0

?1? Click ”Microsoft.NET”.



?2? Checked “I have read and accept the license terms”, then click “Install”.



3. USB driver install

?1? FVCIlink to power, then the device working.

?2? Connect USB line to computer.

?3? Click “Start”.

?4? Click “control panel”.



?5? Change the view to small icon in the top right corner.



?6? Find “Device manager”.

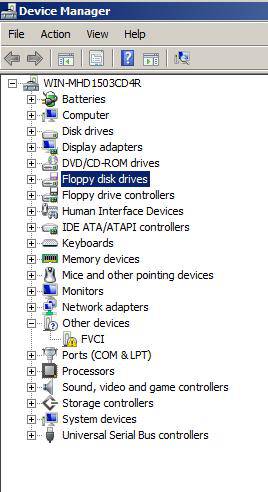

?7? And you will find “FVCI” label. (The USB must be connected to the computer.)



?8? Right click ”FVCI”, and click “Update Driver Software”.



?9? Click “Browse my computer for driver ”.

?10? Click “Browse”, and input the driver path of USB driver package.

?11? Click ”OK”, then click”next”.

?12? If there is a windows security popup, Click “Install this driver software anyway”.



?13? If appear following information, it means install successful.



?14? Check the “device manager”, if you see below figure, it means FVCI has been connected to the computer.



4. Device interface description

1.1 Right panel





?1? DC 12V/1A

?2? Network port

?3? USB port

?4? Update pin, use for firmware update

4.2 Left panel





?5? Analog input

?6? Programming voltage supply, 5V-20V, 120ma

?7? Vehicle communication port

4.3 Lamp panel



?8? Device power status lamp

?9? Software of device running status lamp

?10? Vehicle communication status lamp

?11? Network connection status lamp

?12? USB connection status lamp

5. Software instructions

?1?Click “FVCI” icon on the desktop. Note: The computer must be connected to internet.



?2?Click “Read Version” can read FVCI software and hardware version.





?3?Click “Firmware Update” can update the hardware.

?4?Click “Software Update” can update the software.

?5?Click”DOIP”, then click “Enter DOIP mode”, the FVCI will enter the situation of Ethernet convert to OBD2 of DOIP.





?6?Click ”Firmware Refresh” when you operate“firmware update” error.

6. Update announcements

?1? Before update, the internet must be connected.

?2? The FVCI tool can download from our website, please use the newest version to update.

?3? The firmware version and software version must be the newest version meanwhile. Otherwise the device will appear some error.



?1?If you use “Firmware update” failed, you can use “Firmware refresh”.

1. Technical support

Our company website: www.fcar.com
