BioPower TECH Vehicle Charging System Analyzer Battery Tester

Top 2 Reasons to Get BioPower TECH Vehicle Charging System Analyzer:

Quick diagnoses for battery/alternator output
Colored lights to verify normal or low voltage on battery or charging

Notice: 6 Month Warranty Only

BioPower TECH Vehicle Charging System Analyzer Functions:

Battery Test

Engine off (no ACC on), connect the positive battery pole with the red probe and the negative battery pole with the black clips
Lights 1 to 3 (or 4) will glow to indicate battery condition.

Some testing may show a reading above number 3, and cause the number 4 light in the alternator section to glow; this does not indicate a problem, some heavy duty high output batteries will glow in that way.

Alternator Test

Engine running, connect the positive battery pole with the red probe and the negative battery pole with the black clips
Lights 1 to 5 (or 6) will glow to show the charging system status (alternator output).

Remarks: Led lights 1-6 are for 5V (Led#1), 12V (Led#2), 12.5V (Led#3), 13V (Led#4), 13.5V (Led#5), 14V (Led#6)

Distinctive Features on Manufacturing:

All cable wires are specially made by material silicon rubber, compared by traditional PVC wires, our wires can withstand up to 200 Centi-degree in high temp., and in extremely cold weather, the wire will not crack. Our wires are also with better abrasion resistance property, and can use as long life.
3M sticker ONLY (world big name sticker vendor) on our Analyzer.
The printing on the sticker can’t be removed (obliterated), since the color printing is on the back side and the surface of the brand sticker also with a plastic film, it something like the keypad printing on mobile phones; and in this way, the sticker can be long life and in recycle use.

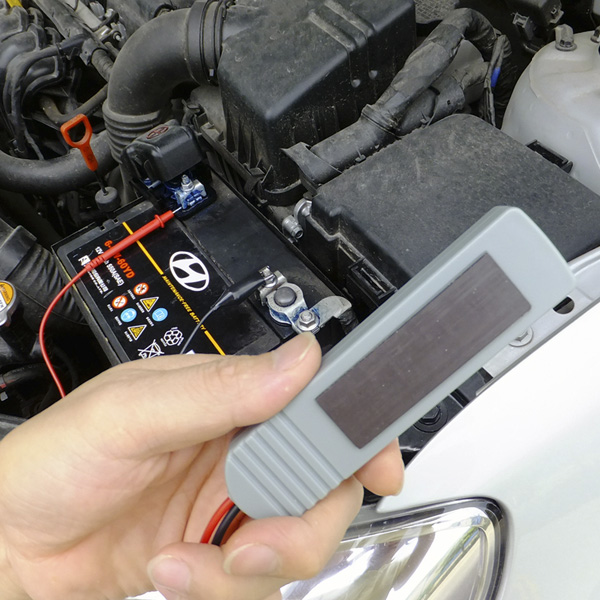

With Magnetic board, can be easily adhesive the tester onto vehicle metal plate.
Accuracy on full range testing from 5.0V to 14.0V, and 100% tested for each item delivered.
Both CE (European Directives) and FCC (USA Directives) certified product and with CE & FCC certificates.

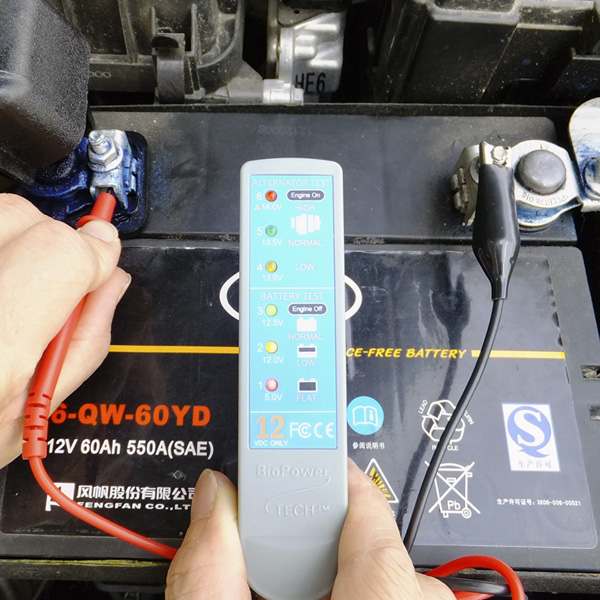

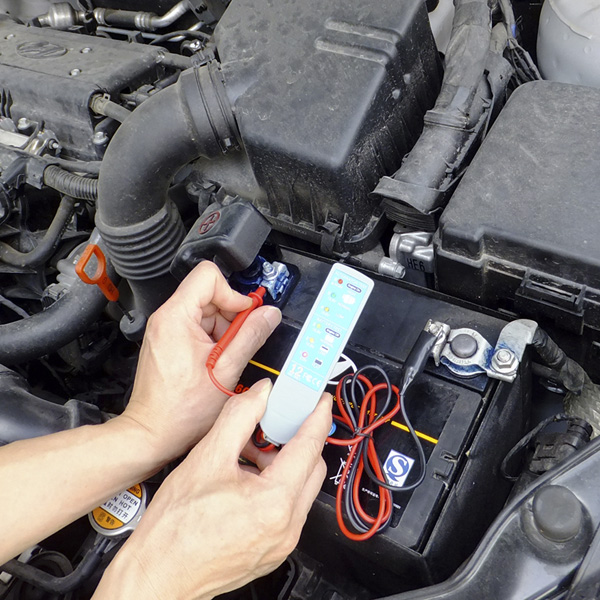

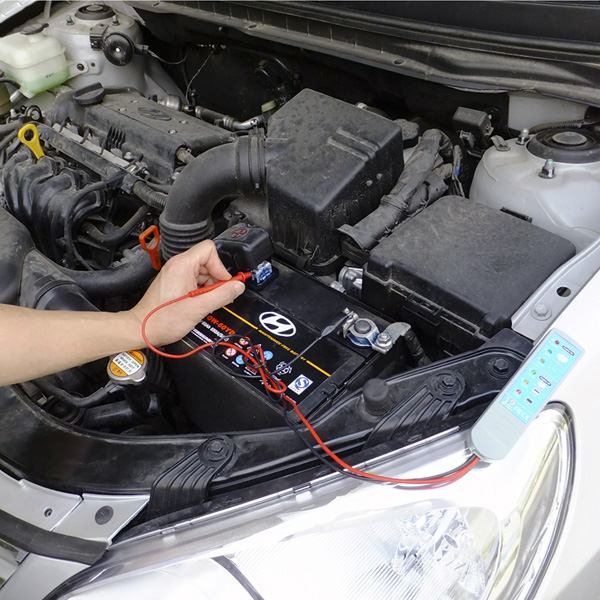

BioPower TECH Vehicle Charging System Analyzer Operation Display:

BioPower TECH Vehicle Chargins System Analyzer 1
