Autel MX-Sensor 433MHz/315MHz Universal Programmable TPMS Tire Pressure Monitor Sensor Replacement

Posted on December 17, 2018 by VCDS

Diagzone Xdiag Subscription Renew, LAUNCH LTR-01 RF Sensor, Thinkdiag Renew , Scania SDP3 Installation

Autel MX-Sensor 433MHz/315MHz Universal Programmable TPMS Tire Pressure Monitor Sensor Replacement

Autel MX-Sensor 433MHz/315MHz Universal Programmable TPMS Sensor Specially Built for Tire Pressure Sensor Replacement

Top 6 Reasons to Get MX-Sensor 433MHz/315MHz TPMS Diagnostic & Service Tool

1. Built to perform like OE sensor, in terms of signal, durability and functionality

2. Automotive battery grade to meet severe weather conditions

3. High-precision air valve to prevent air leakage

4. Replaceable aluminum valve stem is anodized for corrosion resistance

5. Robust clamp-in pivoting stem design allows for 0-35 degree angle adjustment to fit all types of wheels

6. Fast and simple assembly onto any wheels

MX-Sensor Version: V5.03
Autel MX-Sensor V5.03 cannot only work with Autel MaxiTPMS PAD, can also works with Aute TPMS diagnostic service tool TS608,TS508,TS501 and TS601.

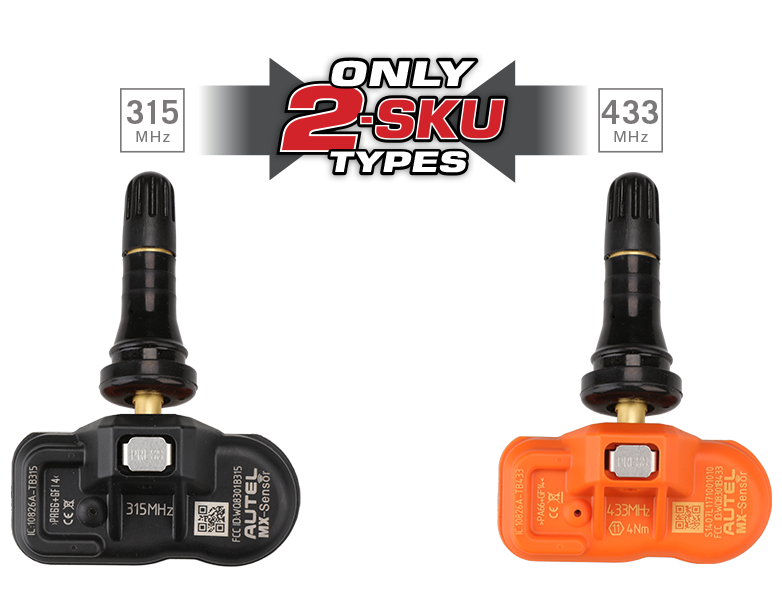

98% vehicle coverage with only 2 SKU types
Facing the growing OE sensor SKU numbers, AUTEL help to greatly reduce tire dealers and mechanic shop’s inventory to only 2 SKU types, 315 MHz sensor and 433 MHz sensor, to replace 98% of OE sensors in the market. MX-Sensors are built to perform like O.E sensor, in terms of signal interval, durability & functionality.
autel-mx-sensor-tpms-programmer-pic-1

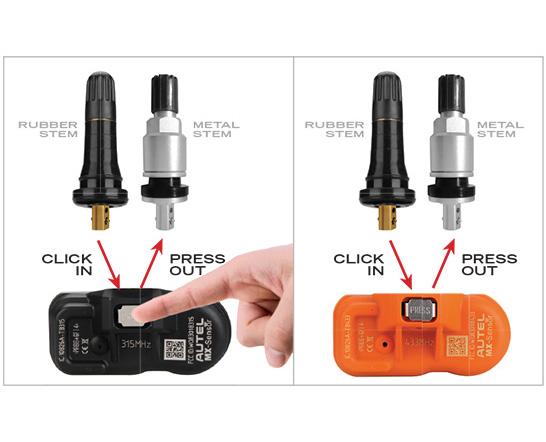

Interchangeable valves with press design
AUTEL MX-Sensors have both rubber valve and metal valve available. The unique patented press release valve design allows rubber and metal sensor valves to be freely interchanged by hand, without requiring a tool for sensor head fitting. Simply click in and press out. Installing TPMS sensors has never been so easy.
autel-mx-sensor-tpms-universal-programmer-pic-2

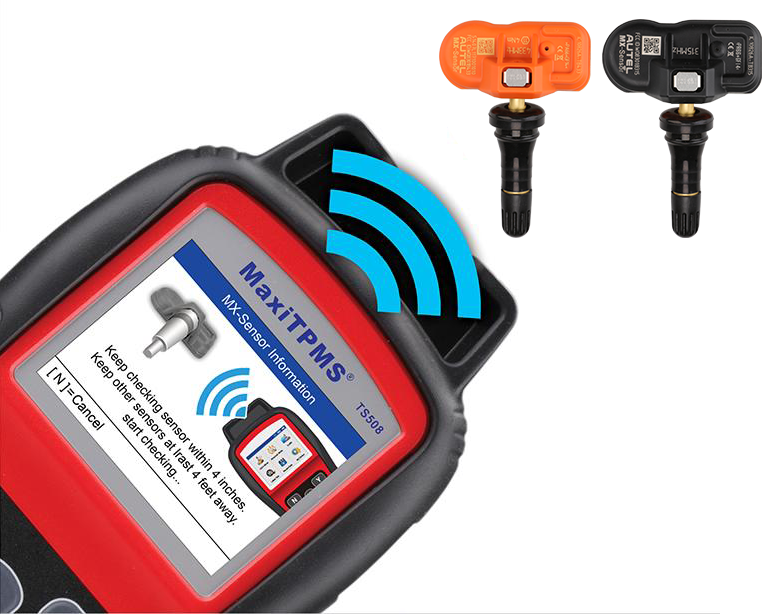

Wireless programming & 100% clone-able
AUTEL MX-Sensor can be wireless programmed by all AUTEL TPMS tools. MX-Sensor is 100% clone-able. No relearn is required when the MX-Sensor is cloned with the original sensor ID and put in the same position.
autel-mx-sensor-tpms-universal-programmer-pic-3
Tested & certified to meet SAE standards
AUTEL high-quality MX-Sensor is tested and certified to meet SAE standards. AUTEL guarantees MX-Sensor are free from manufacturing defects for a period of 24 months or 24,000 miles, whichever option comes first.
autel-mx-sensor-tpms-universal-programmer-pic-4

MX-Sensor 433MHz/315MHz Universal Programmable TPMS Sensor Specifications

Battery Life≥5 years
Operating Temperature-40C to +125C
Storage Temperature-40 C to +150C
Operating Humidity90%
Operating Frequency433MHz/315MHz
Pressure Monitoring Range0 to 900kpa
Pressure Reading Accuracy±10kpa
Temperature Reading Accuracy±5C
G Sensor Reading Accuracy±15%
Transmission Power5-8dBm
Battery3.0V
Dimensions (W x H x D)52*29.1*22.2mm(11388mm³)
Weight17.5g

Package including:

1pc x MX-Sensor 433MHz/315MHz Universal Programmable TPMS Sensor



Autel MX-Sensor 433MHz/315MHz Universal Programmable TPMS Tire Pressure Monitor Sensor Replacement
