2018 Latest Version X-PROG Box ECU Programmer XPROG-M V5.84 with USB Dongle

 2018 Latest Version X-PROG Box ECU Programmer XPROG-M V5.84 with USB Dongle

XPROG-M V5.84 Highlights:

1. Latest software version: V5.84?Firmware:V4.4
2. With USB Dongle, No need to activate
3. Add new authorization: AUTH-0028-1 Renesas V850 Authorized and AUTH-0028-2 Renesas SuperH Authorized 2017/10/9
4. Language: English


XPROG-M V5.84 using tips:


1. You are not allowed to use this newest dongle to update the older version Xprog to V5.84
2. Close all of the computer anti-virus software. If not, X-prog software may be killed.
3. Disconnect the internet. If not, the internet maybe damage the hardware.
4. Uninstall all of the old version xprog-m or xprog box software before you install V5.84 software we provide, because our xprog-box hardware is not compatible with other lower or higher version software, otherwise the hardware will be damaged and will lose its warranty…
5. Never try to UPDATE, the hardware will be damaged if you want to try to update it online, then you will lose its warranty.


XPROG-M V5.84 Authorizations:


• AUTH-0001 Motorola HC05 family authorization (allows to read/write EEPROM)
• AUTH-0002 Motorola HC08 family authorization (allows to read/write EEPROM)
• AUTH-0003 Motorola HC11 family authorization (allows to read/write EEPROM)
• AUTH-0004 Motorola HC12, 9S12 family authorization (allows to read/write EEPROM and flash memory)
• AUTH-0005 Texas Instruments TMS370/TMS374 family authorization (allows to read/write EEPROM)
• AUTH-0006 Motorola HC05Bxx and HC05Xxx family bypass security authorization (allows to read/write secured EEPROM and flash memory)
• AUTH-0007 ST M35080 authorization. Read/Write/Erase device to delivery state.
• AUTH-0008 BMW EWS3 authorization
• AUTH-0009 ATMEGA family authorization (allows to read/write EEPROM and flash memory)
• AUTH-0010 MB ZGS001 authorization
• AUTH-0011 Motorola HC11EA9/E9 bypass security authorization (allows to bypass security bit and read EEPROM and RAM memory)
• AUTH-0012 National CR16 authorization (allows to read/write EEPROM memory)
• AUTH-0014 ST7, ST10 family authorization (allows to read/write internal flash)
• AUTH-0015 MPC5xx authorization (depending on device program automatically detects MPC5xx, M95xxx device type, flash, external flash and configuration memory size)
• AUTH-0018 Motorola HC12, HC912, MC9S12, MC9S12X bypass security authorization (allows to read/write secured EEPROM and flash memory)
• AUTH-0020 ARM (Micronas, …) Family authorization (allows to read/write internal flash and external serial EEPROM)
• AUTH-0021 ARM (Micronas, …) Family bypass security authorization (allows to read/write secured and non-secured internal flash and external serial EEPROM, view/change mileage, Chassis number (VIN), serial number and PIN code).
• AUTH-0023-1 MAC7xxx
• AUTH-0023-2 XC23xx
• AUTH-0024-1 MC9S12Cxx
• AUTH-0024-2 MC9S12XE
• AUTH-0024-3 9S12XE SECURITY
• AUTH-0024-4 MC9S12HA/HY/P
• AUTH-0025-1 MPC/SPC5xxx Authorized 2016/3/13
• AUTH-0027-1 HC(S)908 update Authorized 2016/3/13
• AUTH-0027-2 HC(S)908 sercurity Authorized 2016/3/13
• AUTH-0028-1 Renesas V850 Authorized 2017/10/9
• AUTH-0028-2 Renesas SuperH Authorized 2017/10/9


XPROG-M V5.84 Adapters:


• ADP-0001 TMS370 PLCC28 programming adapter
• ADP-0002 TMS370 PLCC44 programming adapter
• ADP-0003 TMS370 PLCC68 programming adapter
• ADP-0004 Motorola HC05B/X PLCC52 programming adapter
• ADP-0005 Motorola HC05B/X QFP64 programming adapter
• ADP-0006 ST M35080 in-circuit programming adapter
• ADP-0008 TMS374 family in-circuit programming adapter
• ADP-0009 MC68HC05V12 programming adapter
• ADP-0010 TMS374 on-board programming adapter
• ADP-0011 HC11EA9/E9 programming adapter
• ADP-0017 HC(S)12 BDM / ARM Micronas in-circuit programming/bypass security adapter
• Additional adaptor for 5M48H P-Flash
• ADP-0019 Rev.A
• EWS3 adaptor
• EEPROM adaptor
• QFP28 adaptor
• QFP64 adaptor
• QFP80 adaptor
• QFP112 adaptor
• QFP144 adaptor

Install Notice:

XPROG-M V5.84 windows system required as below:

1. Windows system should be windows XP 32bit OR windows 7 64 bit, all the patch software for the windows system should be installed already and the windows properly works well…
2. The windows system should be with at lest 2 partitions (except the CD ROM.)
3. Can not be working with virtual harddisk.

XPROG-M V5.84 Install manuals in words:

1. Click the file "installation.reg", get the file information to the regedit.
2. Install the file "AdbeRdr11000_zh_CN.exe", it is a must, otherwise the Xprog software will not start.
3. Plug the Xprog main interface to the computer, install the USB driver.
4. Copy the folder "XPROG-BOX5.84" to the desktop, and open it, and run the "xprogdesktop.exe", then software open.

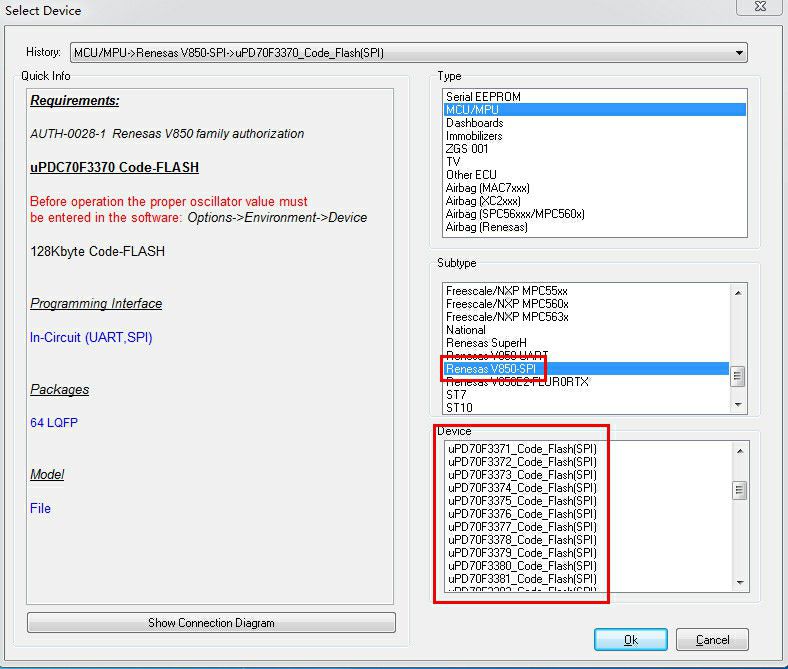

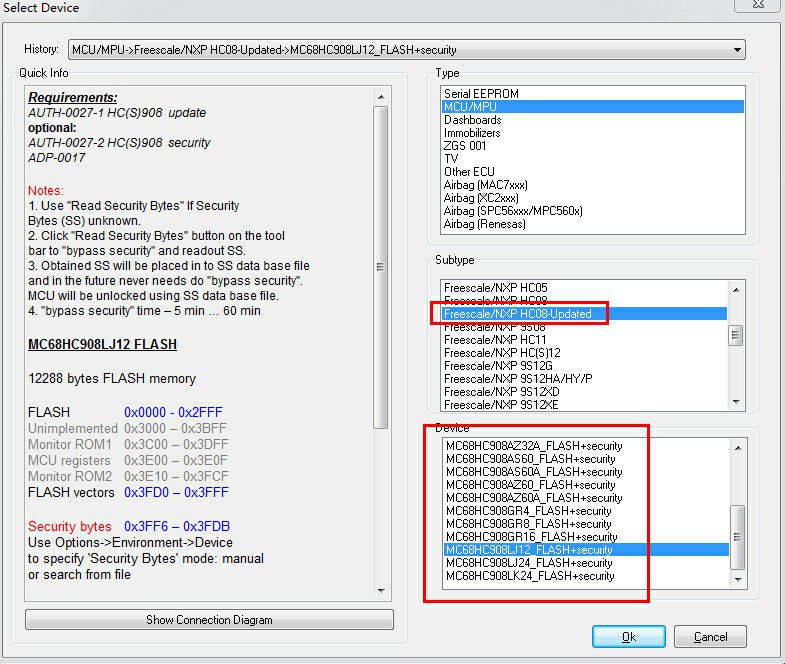

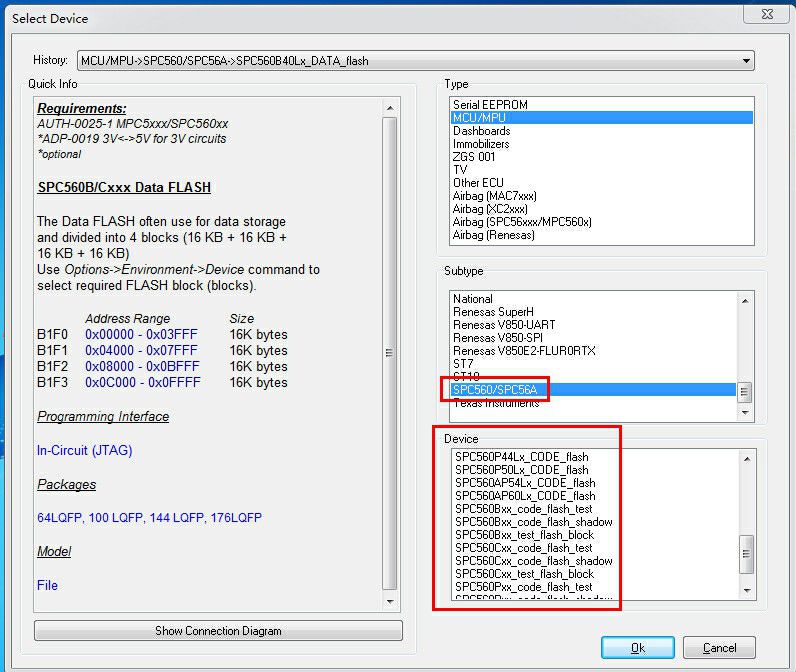

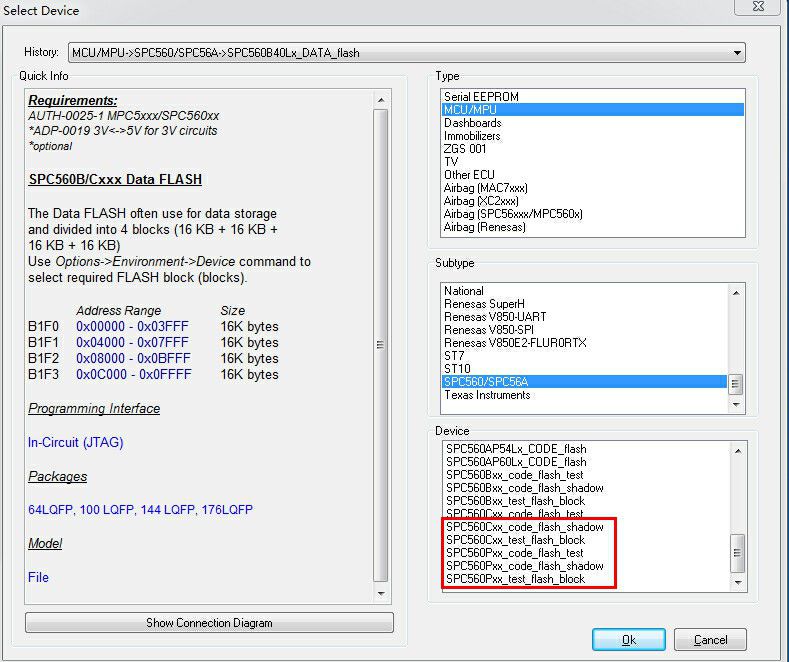

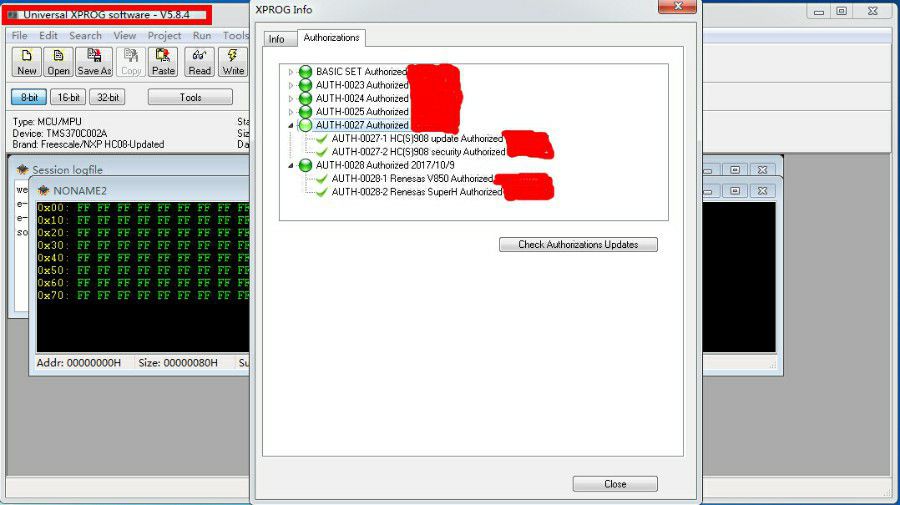

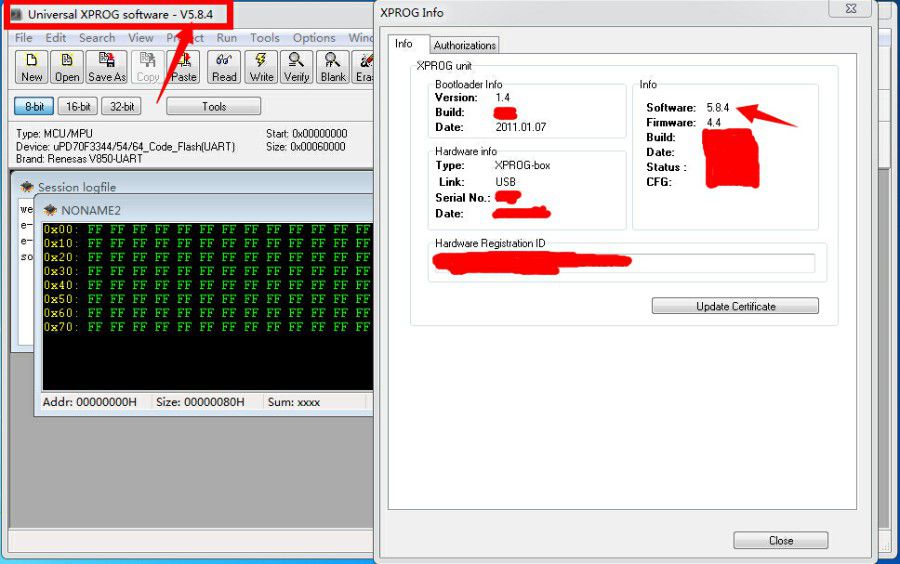

XPROG-M V5.84 Software Display:

Package Includes:


• 1pc x  XPROG-Box Hardware (Aluminum Enclosure) .
• 20pcx  Adapters Set
• 1pc x  USB Cable.
• 1pc x USB Dongle
• 1pc x  CD with XPROG-Box Software (V5.84)
